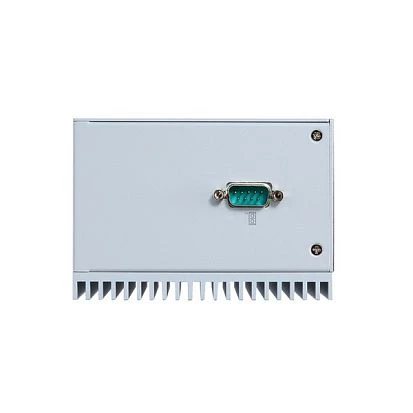

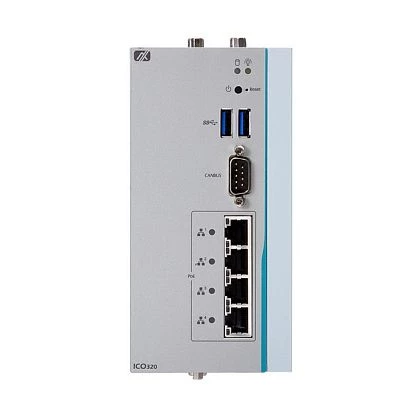

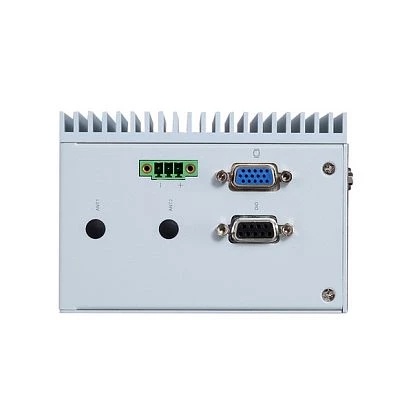

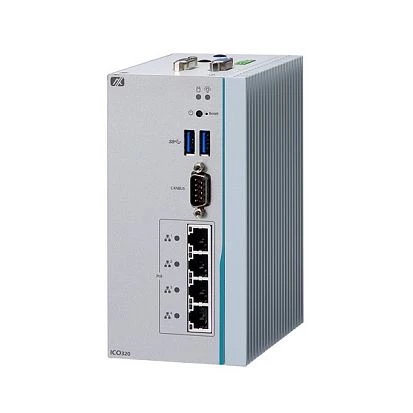

ICO320-83C-DIO-N3350-4POE-DC
AXIOMTEK
SKU: 07767700
Robust Din-rail Fanless Embedded system with Intel Celeron N3350 1.1GHz, DDR3L, VGA, 4x10/100/1000 Ethernet PoE, 2xIsolated RS-232/422/485, 2xUSB 3.0, 2.5" SATA, mSATA, 2xMiniPCIe, DIO, IP40
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DB15 VGA, 4xRJ45 Ethernet, 2xUSB, DC input (terminal block), DB9 DIO
System Power Input
Input Voltage DC
12 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
79 mm
Height
155 mm
Depth
110 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
3 Grms w/ SSD
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
