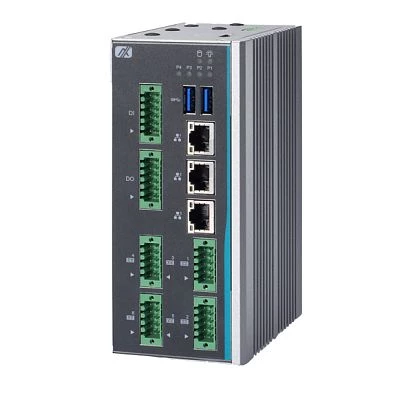

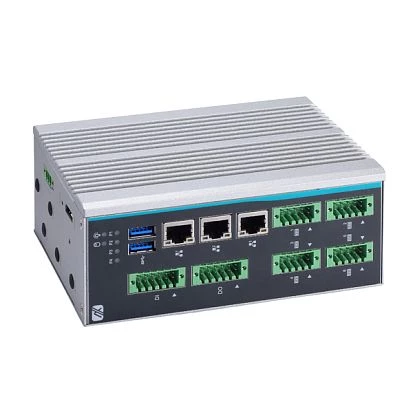

ICO300-M3940-A
AXIOMTEK
SKU: 10136100
ATEX/CID2 Certified Din-rail Fanless Embedded System with Intel Intel Atom Processor x5-E3940 1.6-1.8GHz, DDR3L up to 8GB, 8Gb eMMC, 3xGbE LAN, 6xCOM, DIO, 2.5" SATA SSD/HDD bay, 2xMiniPCIe, 9-36V DC, -40..70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink

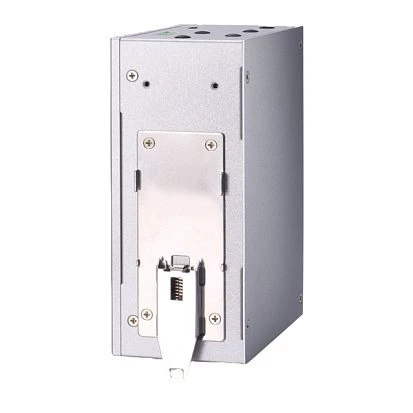

Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom E3940
Socket
FCBGA1296
CPU Support Type
Atom
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Graphic Memory Size
2 GB
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
16
Isolation DIO
Yes
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
2.5"
Drive Interface
SATA
1st Storage Capacity
256 GB
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors

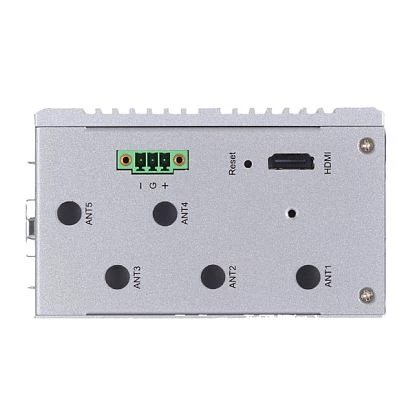

HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block), DIO (terminal block), 2xCOM (terminal block), 4xSMA, 4xCOM (terminal block)
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
63 mm
Height
155 mm
Depth
110 mm
Operating Conditions
Operating Temperature
-40..75 °C
Vibration
5G, 10 - 150 Hz, amplitude 0.35 mm
Shock
Operating, 25G, half-sine, duration 11 ms
Standards and Certifications
Certifications
CE
Explosion safety
ATEX Zone 2 Group II, UL/cUL Class I Division 2
Rolling Stock
EN 50121-4
Safety
UL 60950-1
Dimensions
Net Weight
1 kg
Gross Weight
1 kg
