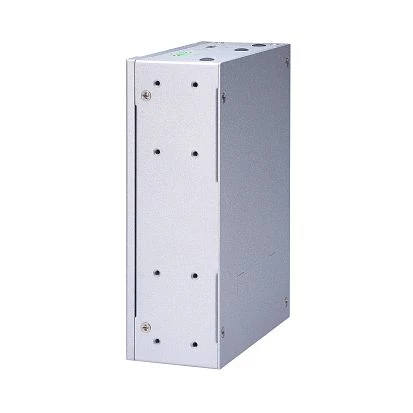

ICO300-M3930S-A
AXIOMTEK
SKU: 10136000
ATEX/CID2 Certified Din-rail Fanless Embedded System with Intel Intel Atom Processor x5-E3930 1.3-1.8GHz, DDR3L up to 8GB, 8Gb eMMC, 3xGbE LAN, 2xCOM, 2.5" SATA SSD/HDD bay, 2xMiniPCIe, 9-36V DC, -40..70C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom E3930
Socket
FCBGA1296
CPU Support Type
Atom
Max CPU frequency
1.8 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Graphic Memory Size
2 GB
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
2
USB v3.x
2
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
8 GB
Extension Slots
Total
4
M.2
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors

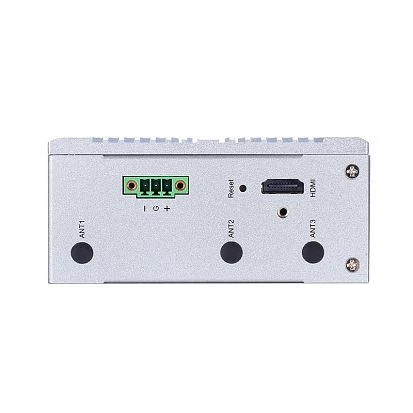

HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block), 2xCOM (terminal block), 4xSMA
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
63 mm
Height
155 mm
Depth
110 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
10-95%
Vibration
5G, 10 - 150 Hz, amplitude 0.35 mm
Shock
Operating, 25G, half-sine, duration 11 ms
Standards and Certifications
Certifications
CE
EMI
FCC Part 18
Explosion safety
ATEX Zone 2 Group II, UL/cUL Class I Division 2
Rolling Stock
EN 50121-4
Safety
UL 60950-1
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
