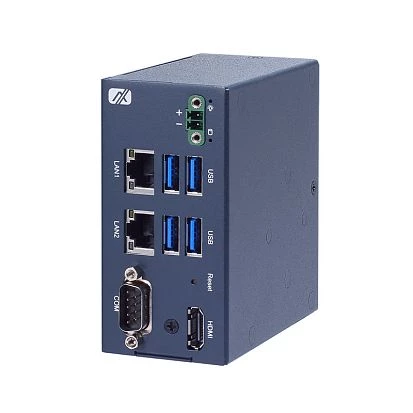

ICO110-N3350-AW
AXIOMTEK
SKU: 11597700
Robust Din-rail Fanless Embedded system with Intel Celeron N3350 1.1GHz, DDR3L, HDMI, 2xGbE LAN, 1xCOM, 4xUSB, 1xMiniPCIe (mSATA), -40...+70C, 12...24V DC
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Celeron N3350
Socket
CPU onboard
Max CPU frequency
2.4 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Realtek RTL8119I
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
48 mm
Height
100 mm
Depth
100 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
