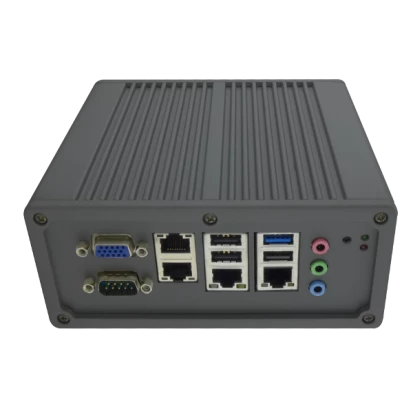

IBDRW Automation Controller
Winmate
SKU: 55871000
Embedded Automation Controller, Intel Bay Trial N2930 1.83GHz, 4GB DDR3L RAM, 4xGbit LAN, VGA, 2xCOM, 4xUSB, Default 32GB mSATA SSD, DIO(9in / 9out), Line-In, Line-Out, Mic-In, 9~36V DC IN (Isolation)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount
Type
Fanless
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel WG82574L
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232
2
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
32 GB
Connectors
Connectors
2xDB9, DB15 VGA, 4xRJ45, Mic In, Line In, Line Out, DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9..36 V
Dimensions and weight
Width
139 mm
Height
65.4 mm
Depth
152 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
1 kg
Gross Weight
2.5 kg
