IBDRW100-EX-P

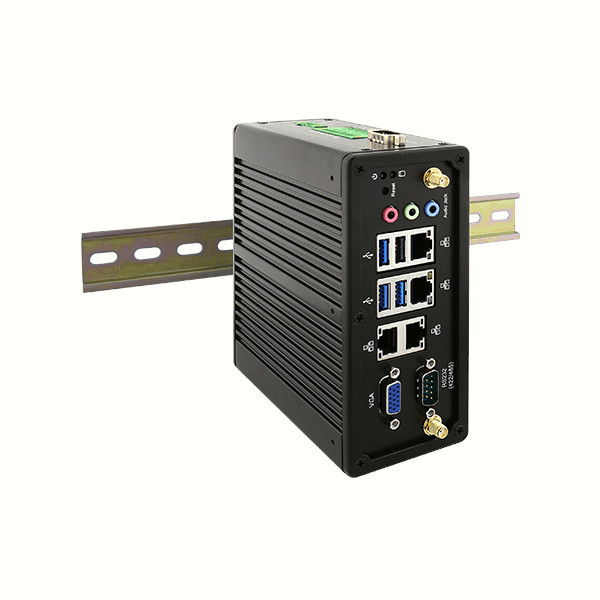

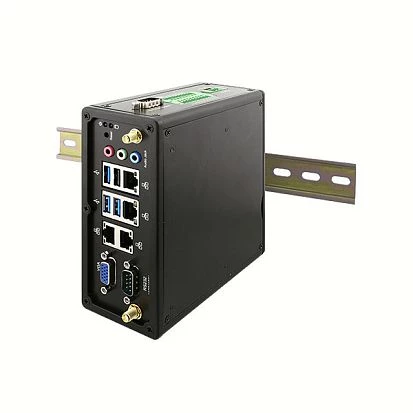

IBDRW100-EX-P

Winmate
SKU: 57632300
DIN-Rail Box PC, ATEX C1D2, Intel Atom E3950 1.6GHz SoC, 4GB DDR3L RAM, 128GB M.2 SSD, VGA, 4xGbit LAN, 2xCOM, 3xUSB 3.2, 1xUSB 2.0, 2xM.2, TPM 2.0, Audio, 9-36VDC-in Terminal Block with PSU, -40..70C Wide Temp.
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Type
Fanless
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom E3950
Socket
FCBGA1296
Memory
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 500, Intel HD Graphics 505
Ethernet
10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-422/485
1
RS-232/422/485
1
USB Total
4
USB 2.0
1
Digital Input-Output
Channels of DIO
18
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Connectors
Connectors
2xDB9, DB15 VGA, 4xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), DC input (terminal block)
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
84 W
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
152 mm
Height
65.4 mm
Depth
139 mm
Standards and Certifications
Certifications
CE/FCC
Explosion safety
ANSI C1D2 12.12.01
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Oil And Gas
Class I Div.2 Groups A, B, C, D
Safety
CSA, UL 62368-1
Dimensions
Gross Weight
2.5 kg
Construction
