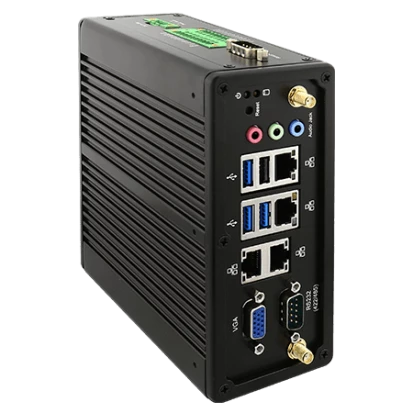

IBDRW100-EL
Winmate
SKU: 57733500
DIN-Rail Box PC, AWS IoT Greengrass, Intel Celeron N6210 2.6GHz CPU, 4GB DDR4 RAM, 128GB M.2 SSD, VGA, 4x2.5GbE LAN, 2xCOM, 3xUSB 3.2, 1xUSB 2.0, 18-bit DIO, Audio, 1xM.2 2242 Key-B, 1xM.2 2230 Key-E, TPM 2.0, 9-36VDC-in w/ PSU, -20..60C Wide Temp.
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Max CPU frequency
3 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
2,5 Gbit/s
4
Interfaces
COM Total
2
RS-422/485
1
RS-232/422/485
1
USB Total
4
USB 2.0
1
USB v3.x
3
Digital Input-Output
Channels of DIO
18
Isolation DIO
Yes
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2230 E
LED / Controls
LED
Power LED, SSD LED
Connectors
Connectors
2xDB9, DB15 VGA, 4xRJ45 Ethernet, 4xUSB, Audio (in/out/Mic), DC input (terminal block), DIO (terminal block)
System Power Input
Input Voltage DC
9 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
84 W
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
152 mm
Height
65.4 mm
Depth
139 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5Hz~500Hz / 1Grms / 3 axis
Shock
15G, 11ms duration
Standards and Certifications
Certifications
CE/FCC
Safety
CSA, UL 62368-1
Dimensions
Net Weight
1.5 kg
Gross Weight
2.3 kg
