HBJC903I1BV-6412L
SKU: 57935300

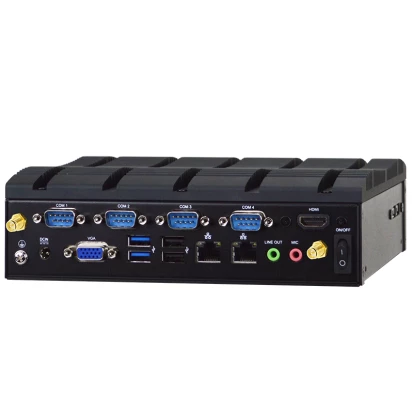

Fanless Embedded PC, Intel Celeron J6412 2.0GHz CPU, Up to 32GB DDR4 RAM, VGA/HDMI, 2x2.5GbE LAN, 4xCOM, 2xUSB 3.1, 2xUSB 2.0, Audio, 2.5" Drive Bay, 1xM.2 2280/2242 Key-M, 1xM.2 2230 Key-E, 1xM.2 3052/3042 Key-B, 12VDC-in w/PSU, -10..50C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i225V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B
LED / Controls
Controls
On/Off
Connectors
Connectors

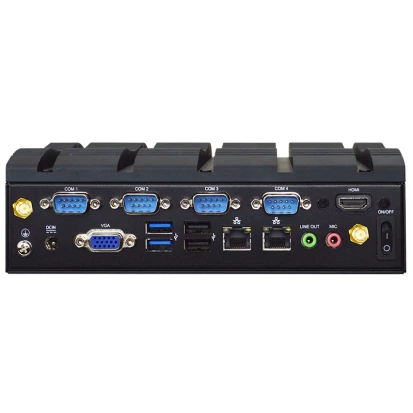

4xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 11
Dimensions and weight
Width
200 mm
Height
59.5 mm
Depth
180.4 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
2.27 kg
Gross Weight
3.27 kg
