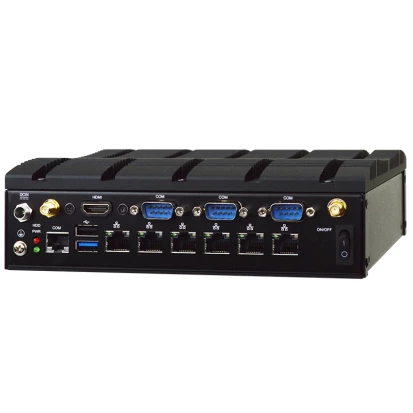

HBJC903I05-6412

HBJC903I05-6412

JetWay
SKU: 57935200
Fanless Embedded PC, Intel Celeron J6412 2.0GHz CPU, Up to 32GB DDR4 RAM, HDMI, 6x2.5GbE LAN, 1xRJ45 Console, 3xCOM, 1xUSB 3.1, 1xUSB 2.0, 2.5" Drive Bay, 1xM.2 2242 Key-M, 1xM.2 2230 Key-E, 1xM.2 3042 Key-B, 12V DC-in w/PSU, -20..60C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225V
2,5 Gbit/s
6
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3042 B
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
3xDB9, HDMI, 6xRJ45 Ethernet, 2xUSB, DC Input, RJ45 (Console)
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
200 mm
Height
59.5 mm
Depth
180 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
2.26 kg
Gross Weight
3.26 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225V
2,5 Gbit/s
6
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3042 B
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
3xDB9, HDMI, 6xRJ45 Ethernet, 2xUSB, DC Input, RJ45 (Console)
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
200 mm
Height
59.5 mm
Depth
180 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
2.26 kg
Gross Weight
3.26 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225V
2,5 Gbit/s
6
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3042 B
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
3xDB9, HDMI, 6xRJ45 Ethernet, 2xUSB, DC Input, RJ45 (Console)
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
200 mm
Height
59.5 mm
Depth
180 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
2.26 kg
Gross Weight
3.26 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i225V
2,5 Gbit/s
6
Interfaces
COM Total
3
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3042 B
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
3xDB9, HDMI, 6xRJ45 Ethernet, 2xUSB, DC Input, RJ45 (Console)
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
200 mm
Height
59.5 mm
Depth
180 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
2.26 kg
Gross Weight
3.26 kg

Documentation
HBJC903I05-6412-Datasheet.pdf
Documentation
HBJC903I05-6412-Datasheet.pdf
Documentation
HBJC903I05-6412-Datasheet.pdf
Documentation
HBJC903I05-6412-Datasheet.pdf
