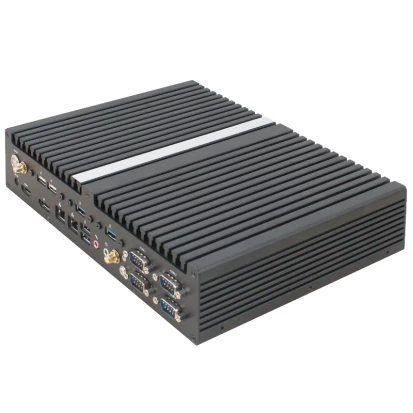

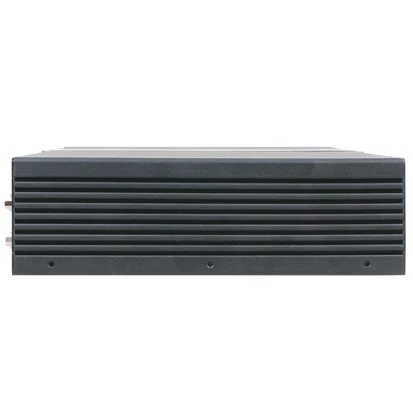

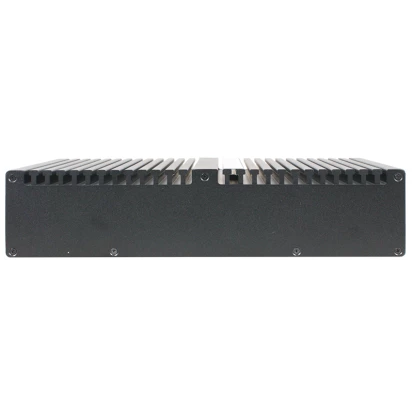

HBJC501I25-H6102
SKU: 57934900
Fanless Embedded PC, LGA1700, Intel Core i7/i5/i3/Pentium CPU, H610 Chipset, Up to 64GB DDR4 RAM, HDMI/DP, 2xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1x2.5" Drive Bay, 1xM.2 2280/2242 Key-M, 1xM.2 2230 Key-E, TPM 2.0, 12-19V DC-in w/ 120W PSU, -10..50C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Pentium
Chipset
Chipset
Intel H610
Memory
Form-factor
DDR4
Socket Type
2xDIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111H
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
3042 M, 2280 M, 2230 E
LED / Controls
Controls
On/Off
Connectors
Connectors

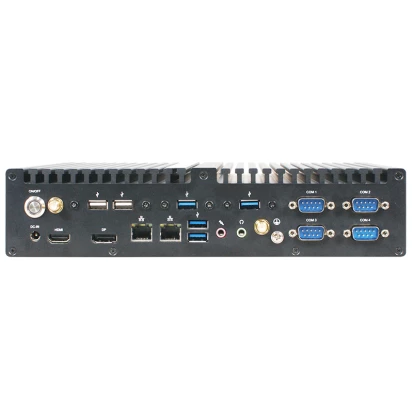

4xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
264 mm
Height
199.4 mm
Depth
58 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
2.1 kg
Gross Weight
2.6 kg
