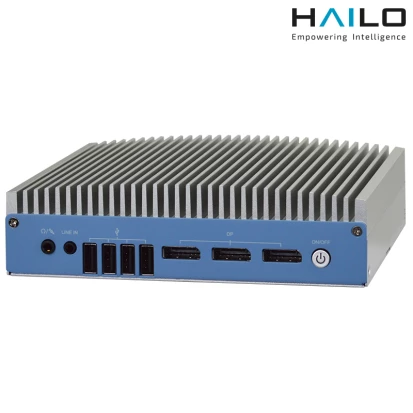

HB368F21-6412-AI

HB368F21-6412-AI

JetWay
SKU: 57935100
Fanless Embedded PC, Intel Celeron J6412 2.0GHz CPU, Up to 32GB DDR4 RAM, 64GB eMMC, 3xDP, 2xGbE LAN, 2xCOM, 2xUSB 3.2, 4xUSB 2.0, 1x8-bit GPIO, Audio, 1xHalo-8 AI Module, 1xM.2 2230 Key-E, 1xM.2 3042 Key-B, 12-36V DC-in w/PSU, -20..70C Wide Temp.
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
3xDisplayPort
Ethernet
Controller Type
Realtek RTL8119I
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
7
USB 2.0
5
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3042 B
LED / Controls
Controls
On/Off
Connectors
Connectors
2xRJ45 Ethernet, 7xUSB, Mic In, Line In, Line Out, DC Input, GPIO (terminal block), 3xDisplay Port
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
160.2 mm
Height
43.5 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-20..70 °C
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
1.01 kg
Gross Weight
1.52 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
3xDisplayPort
Ethernet
Controller Type
Realtek RTL8119I
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
7
USB 2.0
5
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3042 B
LED / Controls
Controls
On/Off
Connectors
Connectors
2xRJ45 Ethernet, 7xUSB, Mic In, Line In, Line Out, DC Input, GPIO (terminal block), 3xDisplay Port
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
160.2 mm
Height
43.5 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-20..70 °C
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
1.01 kg
Gross Weight
1.52 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
3xDisplayPort
Ethernet
Controller Type
Realtek RTL8119I
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
7
USB 2.0
5
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3042 B
LED / Controls
Controls
On/Off
Connectors
Connectors
2xRJ45 Ethernet, 7xUSB, Mic In, Line In, Line Out, DC Input, GPIO (terminal block), 3xDisplay Port
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
160.2 mm
Height
43.5 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-20..70 °C
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
1.01 kg
Gross Weight
1.52 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
3xDisplayPort
Ethernet
Controller Type
Realtek RTL8119I
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
7
USB 2.0
5
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3042 B
LED / Controls
Controls
On/Off
Connectors
Connectors
2xRJ45 Ethernet, 7xUSB, Mic In, Line In, Line Out, DC Input, GPIO (terminal block), 3xDisplay Port
System Power Input
Input Voltage DC
12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
160.2 mm
Height
43.5 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-20..70 °C
Standards and Certifications
Certifications
CE/FCC
Safety
LVD
Dimensions
Net Weight
1.01 kg
Gross Weight
1.52 kg

Documentation
HB368F21-6412-AI-Datasheet.pdf
Documentation
HB368F21-6412-AI-Datasheet.pdf
Documentation
HB368F21-6412-AI-Datasheet.pdf
Documentation
HB368F21-6412-AI-Datasheet.pdf
