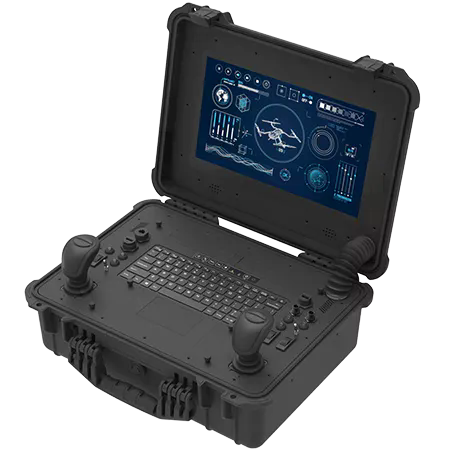

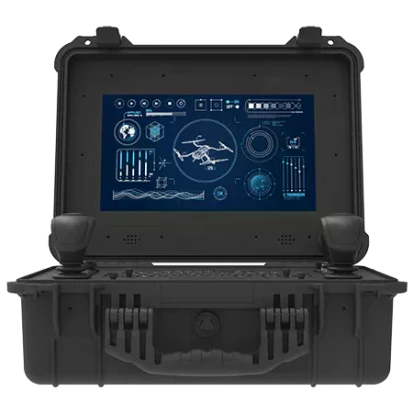

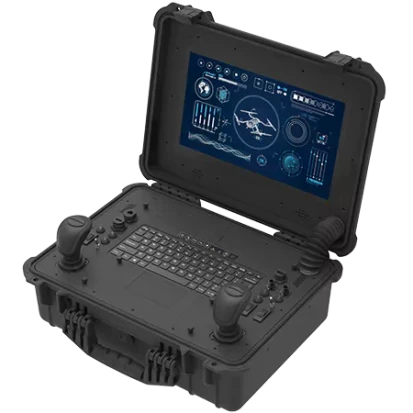

G156AD-SUIT
Winmate
SKU: 80212600
15.6" Rugged Ground Control Station Suitcase, IP65 Full, 1920x1080, 800cd/m2, Optical Bond, Intel Core i5-1235U CPU, 8GB DDR5 RAM, 128GB NVMe SSD, Waterproof (HDMI, GbE LAN, USB 3.0, M12 COM), Audio, 2.5" Drive Bay, 2xBattery, 19VDC-in with 150W PSU
Price on request
Available
Available
Construction
Construction Chassis
Rubber
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
2000 Cd/m2
Contrast Ratio
800~1
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
FCBGA1744
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
1
USB v3.x
1
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
Keyboard / Pointing Devices
Type Keyboard
Membrane
Layout
English US
Type Mouse
Joystick
LED / Controls
LED
Battеry Status, Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
HDMI, RJ45, 1xUSB, M12 COM
System Power Input
Input Voltage DC
19..19 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
150 W
Input Voltage AC
100..240 V
Battery
Battery 1 Technology
Li-ion
Battery Capacity
10050 mA*h
Battery 1 Hotswap
No
Additional Battery Type
Li‑ion
Additional Battery Capacity
10050 mA*h
Additional Battery Hotswap
No
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
502 mm
Height
401 mm
Depth
188 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-90%
Temperature (Storage)
-30~+70
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
14.6 kg
Gross Weight
17 kg
