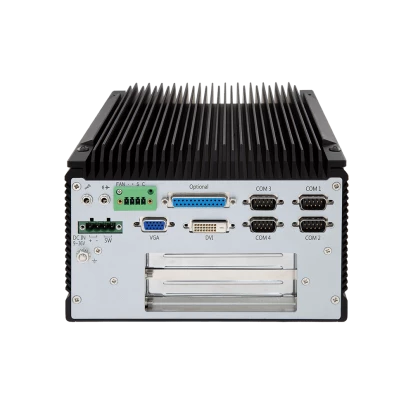

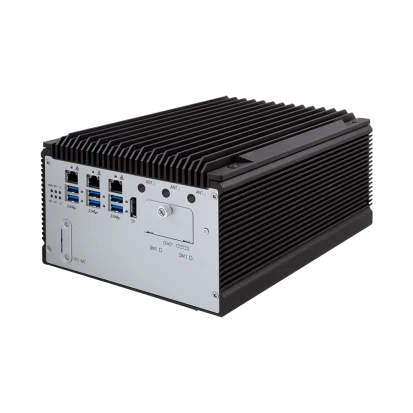

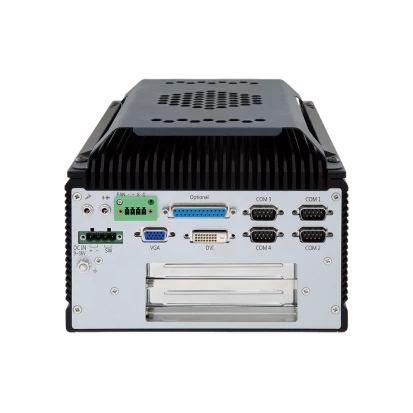

FPC-8211/12/13-Series
Arbor
SKU: 57858300
Fanless Embedded PC, LGA1700, Intel 12/13/14th Gen Core i3/i5/i7/i9 CPU, H610E, Up to 64GB DDR4 RAM, DP/DVI-D/VGA, 3x2.5GbE LAN, 6xUSB 3.2, 4xCOM, 16-bit DIO, CFast, 1xMiniCard, 1xM.2 Key-E, 1xM.2 Key-B, SIM, 2x2.5" Bay, 1/2xPCI/PCIe, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel H610E
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, VGA
Ethernet
Controller Type
Intel i226V
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
4
RS-232
4
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
5
PCI Express x16
1
PCI Express x8
1
M.2
2
M.2 Form Factor
2230 E, 3052 B
Mini-PCIe/Mini Card
1
PCI
2
SIM Card slots
Yes, 2
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, WWAN LED
Connectors
Connectors
4xDB9, DVI-D, DB15 VGA, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), 1xDB25 DIO, 2xSIM Card Slot, CFast slot
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Ubuntu 20.04
Dimensions and weight
Width
268 mm
Height
195 mm
Depth
125 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Vibration
3 Grms/5~500Hz/random operation w/ SSD
Shock
Operating 40G (11ms), Non-operating 60G with SSD
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5.8 kg
Gross Weight
6.3 kg
