FPC-7902

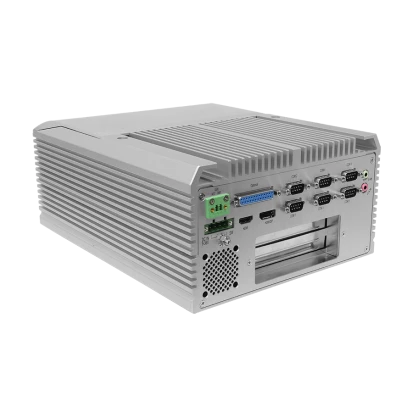

FPC-7902

Arbor
SKU: 09376600
Extreme Rugged Fanless Embedded Server, Socket LGA1151 for Intel Xeon E3/6th Gen. Core CPU, Intel C236 PCH, DDR4, DP, HDMI, Analog RGB, DVI-D, 3xGbE, 6xCOM, 6xUSB, DIO, 2xSATA-600, 2x2.5", CFast, DIO, 1xPCIe x16, 1xPCIe x8, 9-36VDC
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7, Xeon
Chipset
Chipset
Intel C236
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI, VGA
Ethernet
Controller Type
Intel WGI219LM 10/100/1000 Mbps, Intel WGI211AT 10/100/1000 Mbps
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
6
RS-232
2
RS-232/422/485
4
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
RAID Levels
0, 1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
1
2.5" Cage External
1
Extension Slots
Total
4
PCI Express x16
1
PCI Express x8
1
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
6xDB9, DVI-D, DB15 VGA, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), 1xDB25 DIO, CFast slot
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Linux kernel 4.x
Dimensions and weight
Width
250 mm
Height
120 mm
Depth
292 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
7 kg
Gross Weight
9 kg
