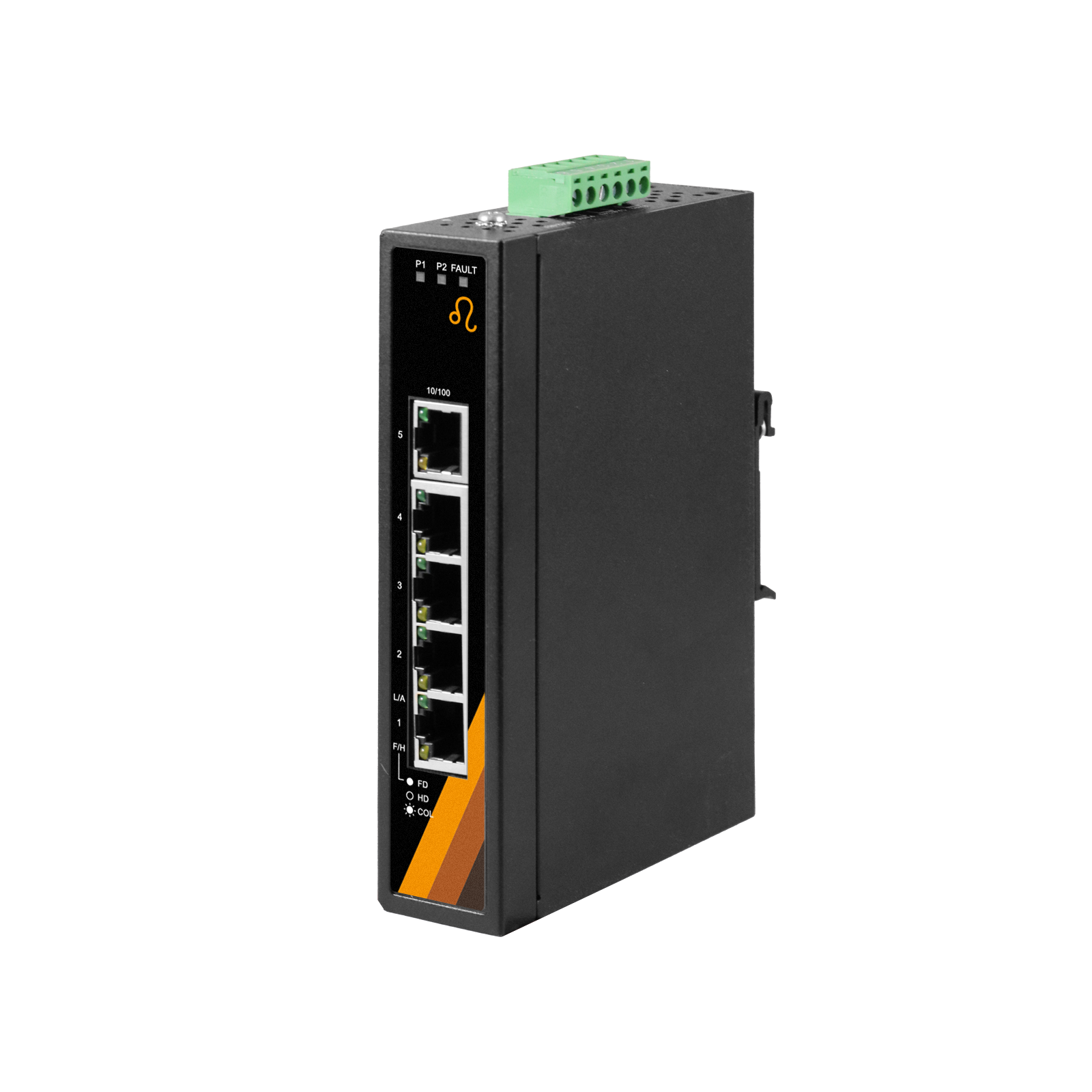

ET2-0500

ET2-0500

Leonton
SKU: 80019400
Industrial Ethernet Switch, IP30, 5x10/100Base-TX, Dual 12..48VDC, Operating Temperature -10..65 C
Price on request
Available
Available

Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Switch Properties
MAC Table Size
2000
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
140 mm
Height
95 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
