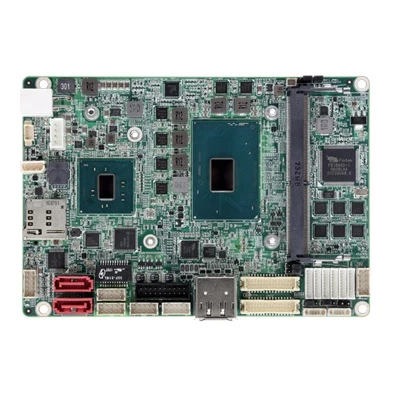

EmCORE-i89M2-6442EQ
Arbor
SKU: 07811700
3.5" Intel Core i5-6442EQ 2.7GHz CPU Card with DDR4 SoDIMM up to 16Gb, 2xDual LVDS, HDMI, DP, 1xSATA, 1xM.2, 2xLAN, 6xCOM, 6xUSB, 1xSIM, Audio, -40..+85C
End-of-life product
System Architecture
Form Factor
3.5"
CPU
Processor Installed
Intel Core i5-6442EQ
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel QM170 PCH
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
0.02 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 520
Interfaces
DisplayPort, LVDS, HDMI
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Audio
Audio Controller
Realtek ALC662
Extension Slots
SIM Card slots
1
M.2
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
6xDB9, LVDS, HDMI, 6xUSB, Mic In, Line In, Line Out, Display Port
Software
Operating System Compatibility
Ubuntu, Windows 10
Dimensions and weight
Width
102 mm
Length
146 mm
Operating Conditions
Operating Temperature
-40..85 °C
Dimensions
Gross Weight
0.36 kg
