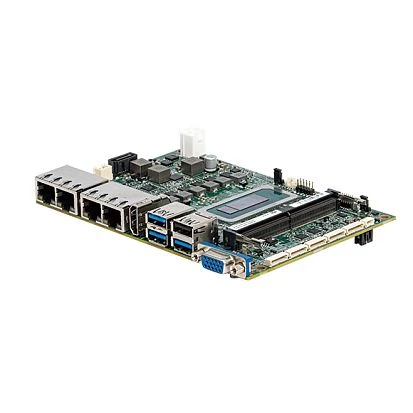

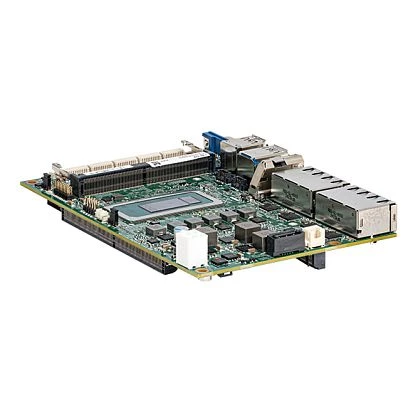

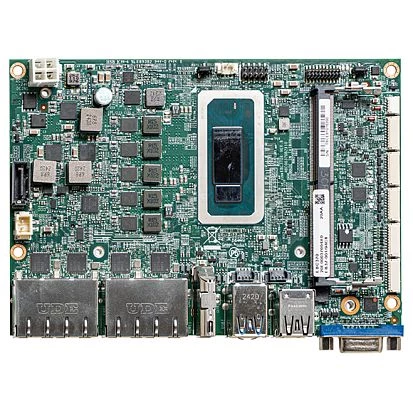

EBC370
NEXCOM
SKU: 80133200
3.5" SBC Mainboard, Intel Core i7-1370PRE CPU, Up to 32GB DDR5 RAM, VGA, HDMI, 4xGbE LAN, 3xUSB 3.2, 1xUSB 2.0, 2xUSB 2.0 Header, 4xCOM Header, 16-bit GPIO, 1xSATA 3.0, 1xM.2 Key-M, 1xM.2 Key-B, MXM Connector, 24VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i7-1370PRE
Socket
FCBGA1744
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Total Ethernet
4
2,5 Gbit/s
4
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
3
USB v3.x
3
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 3052 B
Connectors
Internal Ports
4xCOM, 2xUSB 2.0, GPIO
Connectors
4-pin ATX, DB15 VGA, HDMI, 4xRJ45 Ethernet, 4xUSB
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.2 kg
Gross Weight
0.4 kg
