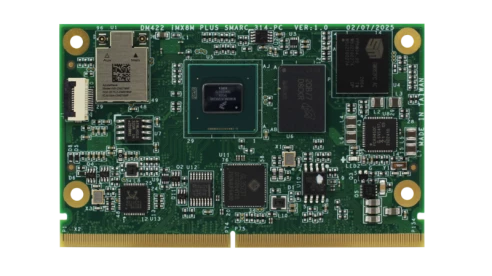

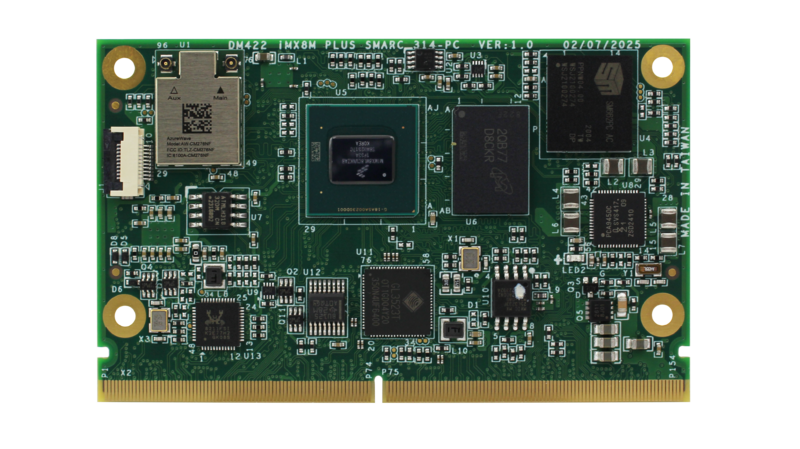

NX8MP-SMARC

ICOP
SKU: 80241200
3.5" NXP i.MX8M Plusi Quad, 4 x Cortex-A53 1.6Ghz, 4/8GB LPDDR4 RAM, HDMI, LVDS, 2 Gigabit LAN, I/O:4xUART, 5xUSB, 5xI2C, SPI, PCIe, 14-bit GPIO, I2S, MIPI-CSIx2 -20..70 C, 12~24VDC
Price on request
Available
Available
System Architecture
Form Factor
Smarc
CPU
Processor Installed
NXP i.MX 8M Plus
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
USB Total
2
USB v3.x
2
Extension Slots
PCI
1
Dimensions and weight
Width
50 mm
Length
82 mm
Operating Conditions
Operating Temperature
-40..85 °C
Dimensions
Net Weight
0.1 kg
Gross Weight
0.5 kg
