TH35-RK3568

TH35-RK3568

Technica
SKU: 80100300

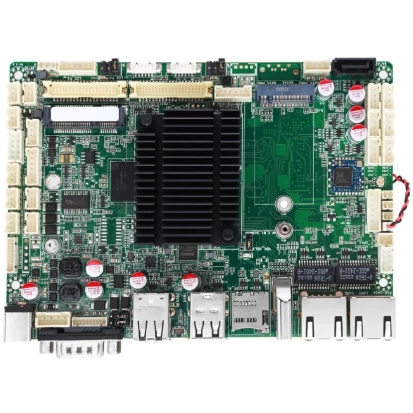

3.5" Embedded SBC, Rockchip RK3568 2.0GHz CPU, 4GB LPDDR4x RAM, 32GB eMMC, HDMI, LVDS/eDP/MIPI, 2xGbE LAN, 1xUSB 3.0, 9xUSB 2.0, 6xCOM, 8-bit GPIO, 2xSATA3, TF Card, WiFi/BT, 1xMiniPCIe, 1xM.2 Key-B, Audio, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Rockchip RK3568
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xLVDS, HDMI, eDP
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
6
RS-232
4
RS-232/485
2
USB Total
10
USB 2.0
9
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
M.2
1
MicroSD
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
3052 B, 3042 B, 2242 B
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
GPIO, 5xCOM, 6xUSB 2.0
Connectors

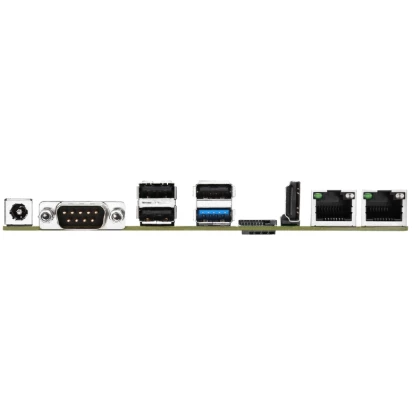

DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, MicroSD card slot
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.45 kg
Gross Weight
0.6 kg
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Rockchip RK3568
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xLVDS, HDMI, eDP
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
6
RS-232
4
RS-232/485
2
USB Total
10
USB 2.0
9
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
M.2
1
MicroSD
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
3052 B, 3042 B, 2242 B
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
GPIO, 5xCOM, 6xUSB 2.0
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, MicroSD card slot
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.45 kg
Gross Weight
0.6 kg
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Rockchip RK3568
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xLVDS, HDMI, eDP
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
6
RS-232
4
RS-232/485
2
USB Total
10
USB 2.0
9
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
M.2
1
MicroSD
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
3052 B, 3042 B, 2242 B
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
GPIO, 5xCOM, 6xUSB 2.0
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, MicroSD card slot
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.45 kg
Gross Weight
0.6 kg
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Rockchip RK3568
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xLVDS, HDMI, eDP
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
6
RS-232
4
RS-232/485
2
USB Total
10
USB 2.0
9
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
M.2
1
MicroSD
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Extension Slots
Total
2
M.2
1
M.2 Form Factor
3052 B, 3042 B, 2242 B
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
GPIO, 5xCOM, 6xUSB 2.0
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input, MicroSD card slot
Software
Operating System Compatibility
Android, Linux OS
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.45 kg
Gross Weight
0.6 kg
Documentation
TH35-RK3568-Datasheet.pdf
Documentation
TH35-RK3568-Datasheet.pdf
Documentation
TH35-RK3568-Datasheet.pdf
Documentation
TH35-RK3568-Datasheet.pdf
