EBC-355U-E3826

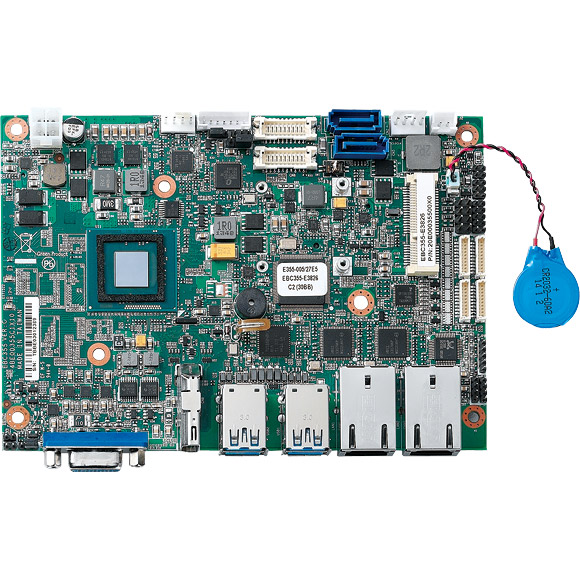

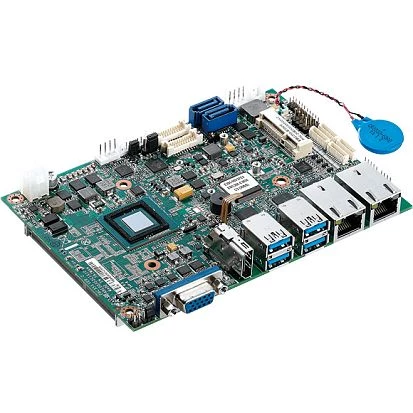

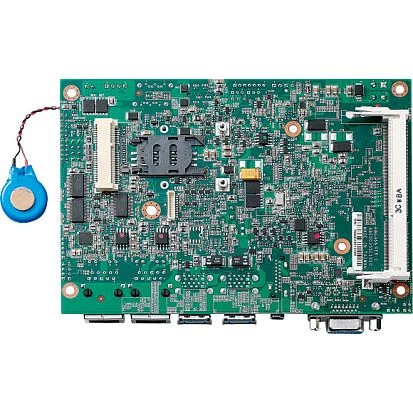

EBC-355U-E3826

NEXCOM
SKU: 80089400
3.5" Embedded Board, Intel Atom E3826 1.46GHz CPU, Up to 8GB DDR3L RAM, VGA, HDMI, LVDS, 2xGbE LAN, 4xUSB 3.0, 4xUSB 3.0 header, 4xCOM header, 8-bit GPIO, 2xSATA2, 2xMiniPCIe Half/Full-Size, Audio, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3826
Socket
FCBGA1170
Max CPU frequency
1.46 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC888
Drive interfaces
SATA 2
2
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xCOM
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.45 kg
Gross Weight
0.6 kg
