EmCORE-i2802-N6210

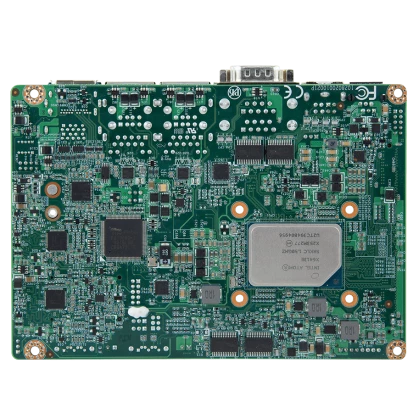

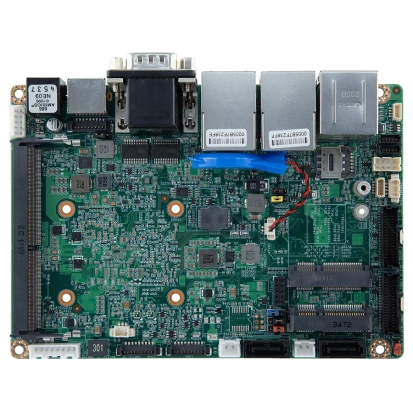

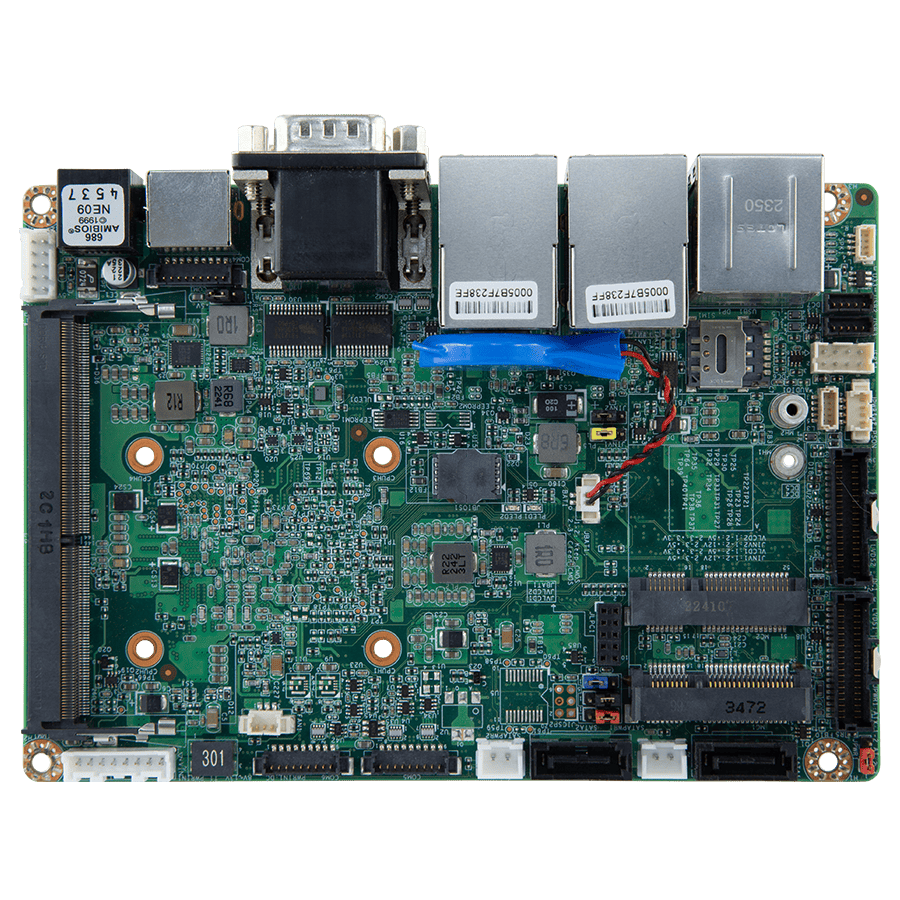

EmCORE-i2802-N6210

Arbor
SKU: 11209300
3.5" Embedded Mainboard, Intel Celeron N6210 CPU, Up to 16GB DDR4 RAM, 2xLVDS/DP, 2x2.5GbE LAN, 6xCOM, 2xUSB 3.0, 4xUSB 2.0, 8-bit DIO, 2xSATA 3, 2xMiniPCI, Audio, 8-13.2VDC-in, -20..70C
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Elkhart Lake
CPU Support Type
Celeron
Processor Installed
Celeron N6210
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, 2xLVDS
Ethernet
Controller Type
Realtek RTL8111 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
USB Total
6
USB 2.0
4
USB v3.x
2
Drive interfaces
SATA 3
2
Extension Slots
Total
2
SIM Card slots
Micro-SIM
Mini-PCI
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

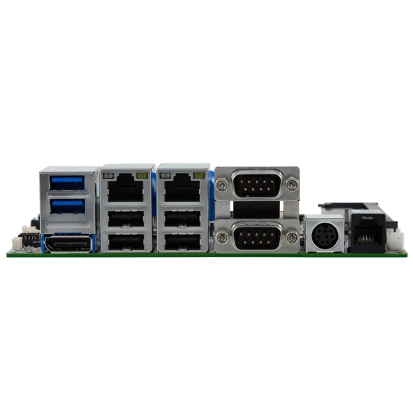

2xDB9, 1xPS/2, 2xRJ45 Ethernet, 6xUSB, Display Port, 1xRJ-12 (12V DC)
Software
Operating System Compatibility
Ubuntu, Windows 10 IoT Enterprise
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Dimensions
Net Weight
0.36 kg
Gross Weight
0.55 kg
