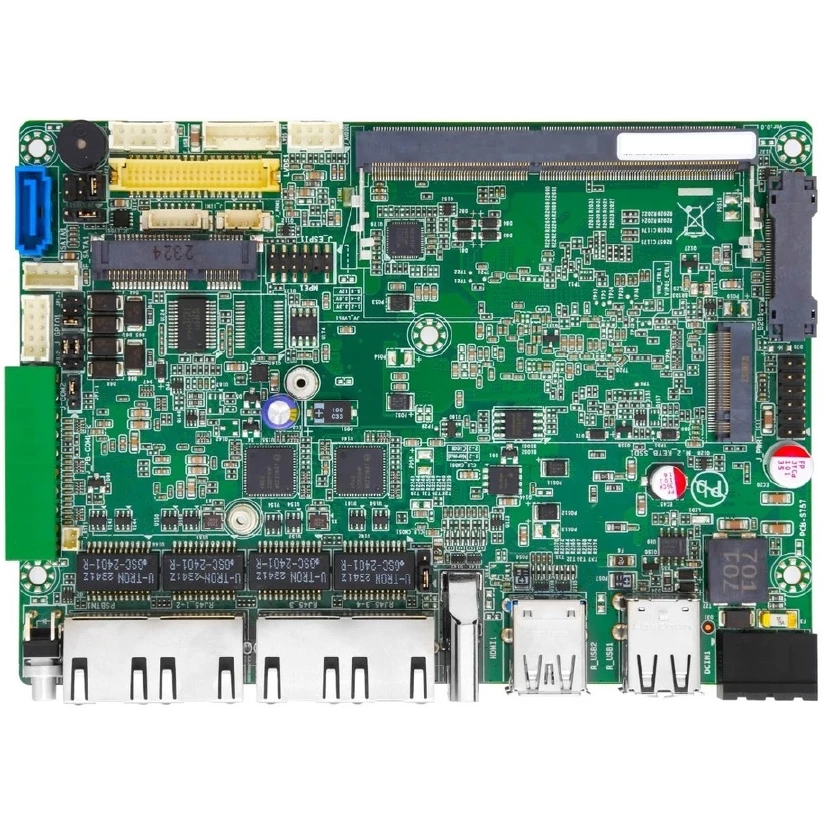

TH35-ALN-4L-Series

SKU: 80099700
3.5" Embedded SBC, Intel Alder Lake-N CPU, Up to 16GB DDR4 RAM, HDMI, LVDS/eDP, 4xGbE LAN, 2xUSB 3.0, 4xUSB 2.0, 2xCOM, 8-bit GPIO, 1xSATA3, 1xMiniPCIe, 1xM.2 Key-M (SATA), 12/24VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Alder Lake
Socket
FCBGA1264
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, eDP
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
COM Total
2
RS-232/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2280 M
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 2xUSB 2.0, GPIO, 40-pin LVDS
Connectors
HDMI, 4xRJ45 Ethernet, 4xUSB, DC input (terminal block)
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.45 kg
Gross Weight
0.6 kg
