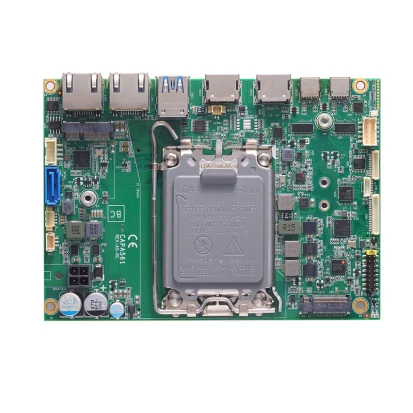

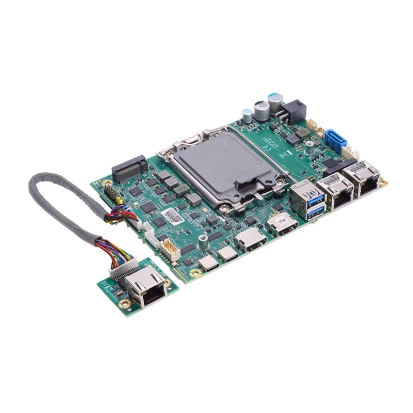

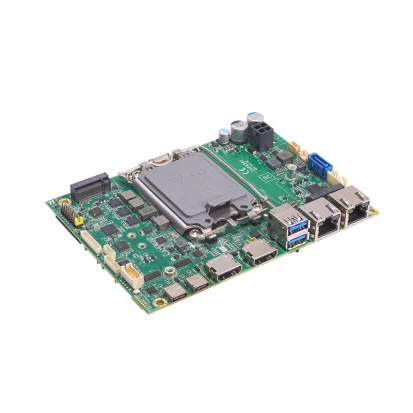

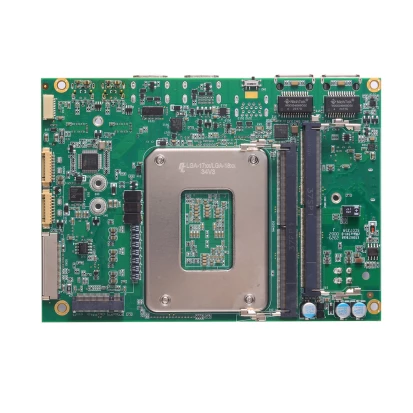

CAPA561-LGA-3LC

CAPA561-LGA-3LC

AXIOMTEK
SKU: 80216200
3.5" Embedded SBC, LGA1700, Intel 1st Gen Core Ultra 7/5/3 CPU, Cooler, Up to 64GB DDR5 RAM, eDP/2xHDMI, 2x2.5GbE LAN, 1xGbE LAN, 2xCOM, 2xUSB 3.2, 2xUSB 2.0, 2xUSB-C DP Alt., 8-bit DIO, 1xSATA 3.0, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
Construction
Type
Fan
CPU
СPU Generation/Family
Alder Lake
CPU Support Type
Core i3, Core i5, Core i7
Socket
LGA1700
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, eDP, Type C DP
Ethernet
Controller Type
Intel i219, Intel i226V
Total Ethernet
3
10/100/1000 Mbit/s
1
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3042 B, 3050 B
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, SATA 3, 40-pin eDP
Connectors
2xHDMI, 3xRJ45 Ethernet, 4xUSB, 2xUSB type C
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
146 mm
Length
104 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Dimensions
Net Weight
0.3 kg
Gross Weight
0.7 kg
