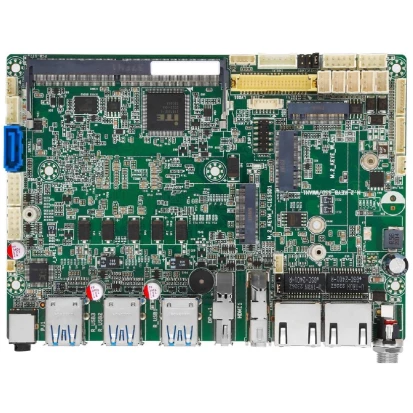

TH35-ALP-i5-1235U

SKU: 80097900
3.5" Embedded SBC, Intel 12th Gen Core i5-1235U CPU, Up to 32GB DDR4 RAM, HDMI, DP, LVDS/eDP, 2xGbE LAN, 6xUSB 3.0, 3xUSB 2.0, 6xCOM, 8-bit GPIO, 1xSATA3, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 12/24VDC-in
Price on request
Available
Available
System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1235U
Socket
FCBGA1744
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, LVDS, HDMI, eDP
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/485
1
USB Total
9
USB 2.0
3
USB v3.x
6
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B, 2242 B
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
GPIO, 5xCOM, 40-pin LVDS, 3xUSB 2.0
Connectors

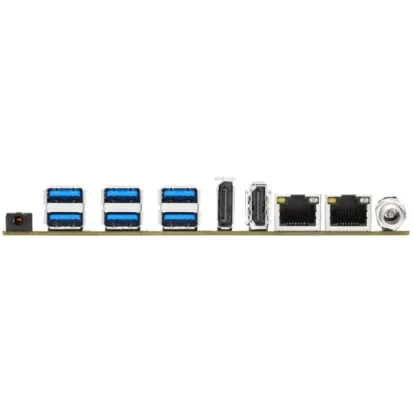

HDMI, 2xRJ45 Ethernet, 6xUSB, Line Out, DC Input, Display Port
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
146 mm
Length
105 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
0.45 kg
Gross Weight
0.6 kg
