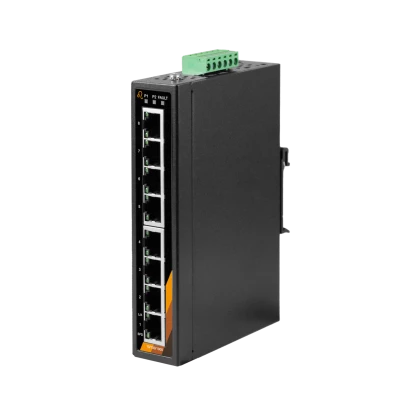

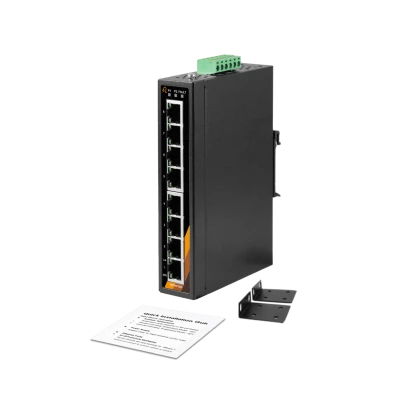

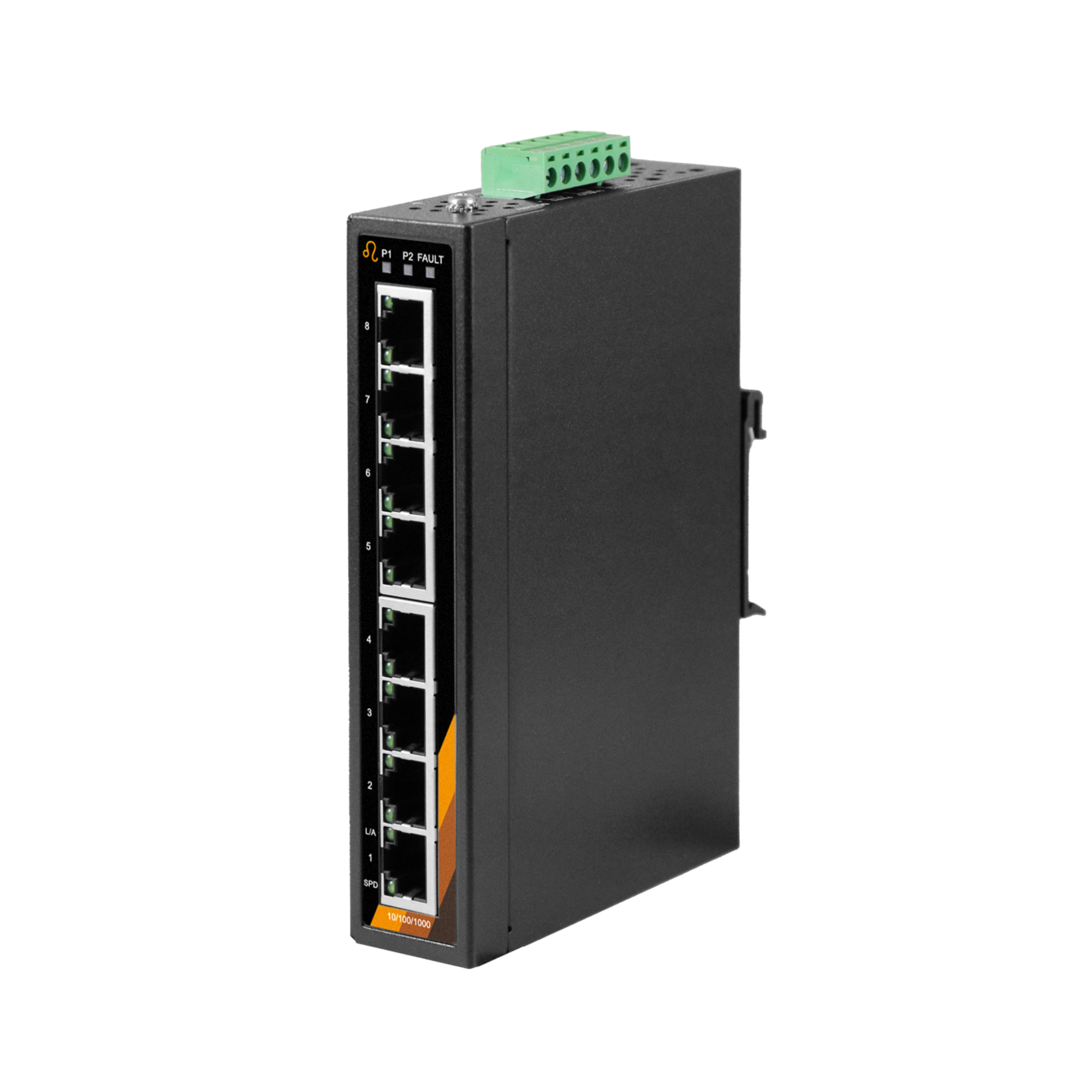

EG2-0800
Leonton
SKU: 80022100
Industrial Ethernet Switch, IP30, 8x10/100/1000Base-T, Dual 12..48VDC, Operating Temperature -10..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)

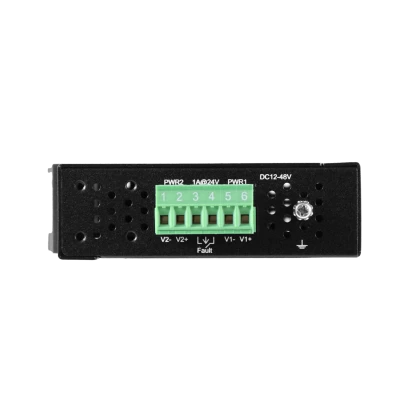

System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis

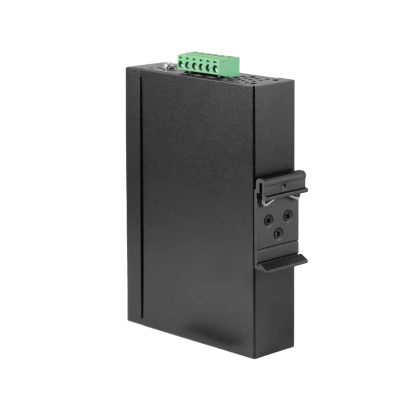

Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
30 mm
Depth
140 mm
Height
95 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
