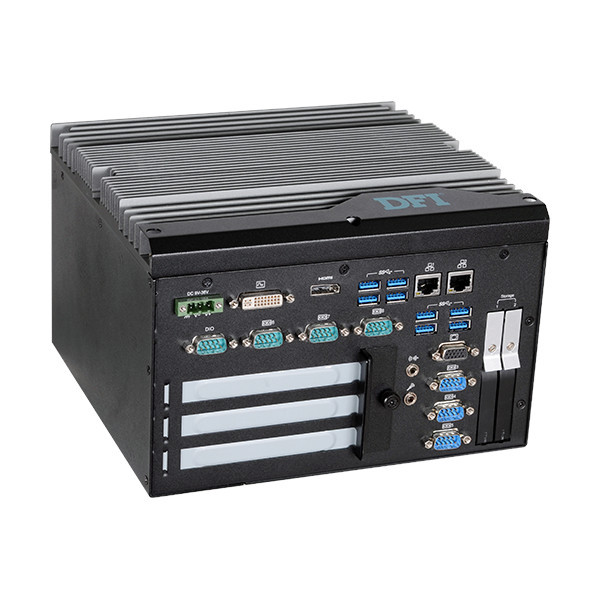

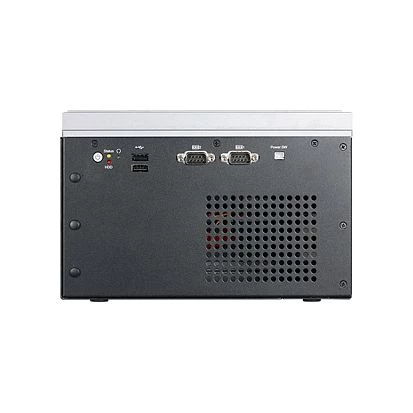

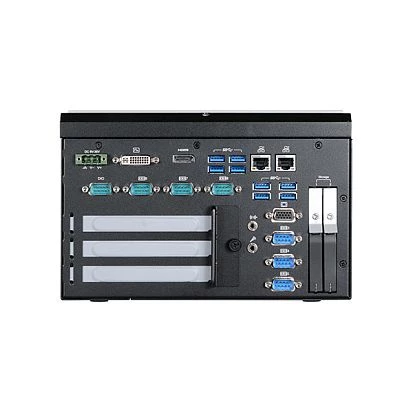

EC531-KH
DFI
SKU: 57139700
Modular-Designed Embedded System, Intel Core i5-7440EQ, 8xCOM, 10xUSB, 2xLAN, 16 DIO, 2xPCI, 1xPCIe, 9..36V DC, -20..60C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7440EQ
Socket
CPU onboard
Max CPU frequency
3.6 GHz
Memory
Form-factor
DDR4
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211, Intel i219-LM
10/100/1000 Mbit/s
2
Interfaces
COM Total
8
RS-232/422/485
8
USB Total
10
USB 2.0
2
USB v3.x
8
Digital Input-Output
Channels of DIO
16
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
6
PCI Express x16
1
M.2
1
Mini-PCIe/Mini Card
2
PCI
2
SIM Card slots
Yes, Micro-SIM
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DVI-D, DB15 VGA, 2xHDMI, 2xRJ45 Ethernet, 8xUSB, Display Port, 8xDB9, 2xUSB (4-pin)
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
235 mm
Height
153.8 mm
Depth
222.1 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
IEC68-2-64
Shock
Half sine wave 3G, 11ms, 3 shock per axis
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
