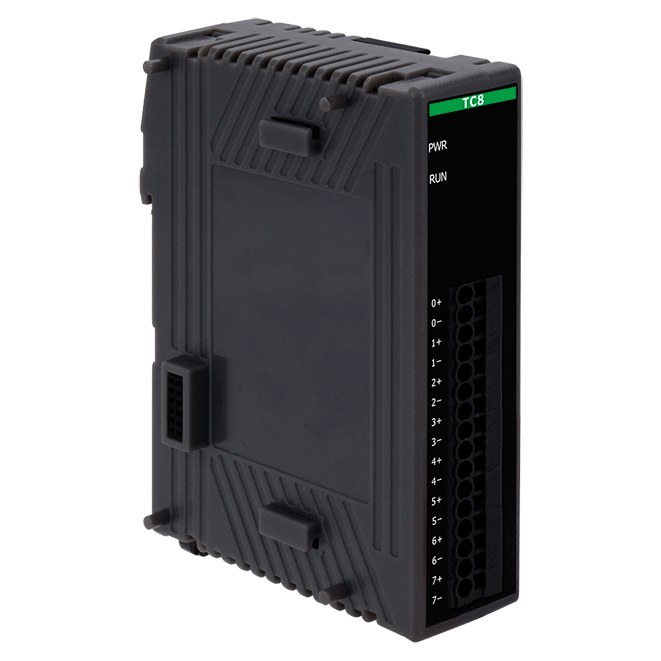

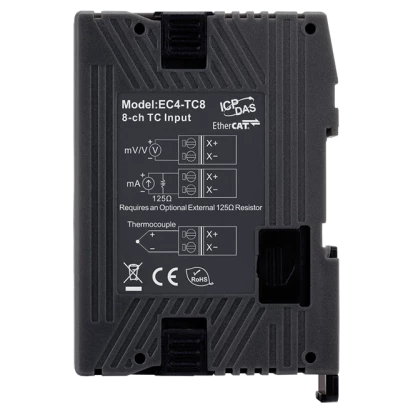

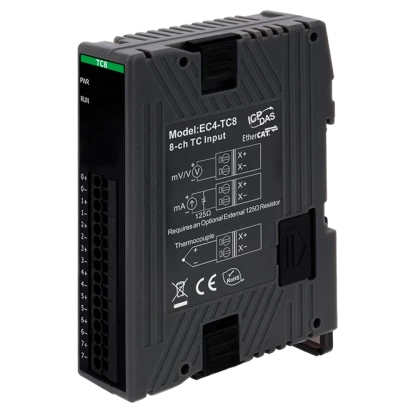

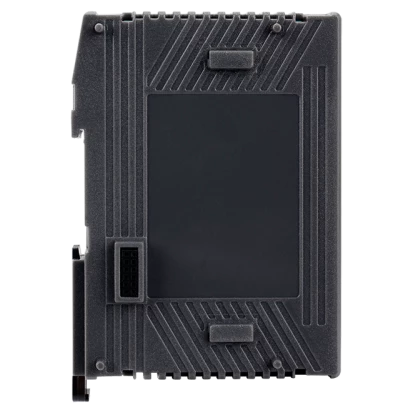

EC4-TC8
ICP DAS
SKU: 11650500
EtherCAT Slim I/O Module with 8-ch High Speed Thermocouple Inputs, 24VDC
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Input
Total channels of analog input
8
Number of Bits
16 Bit
Sampling rate
100 Hz
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
25 mm
Depth
73 mm
Height
108 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
