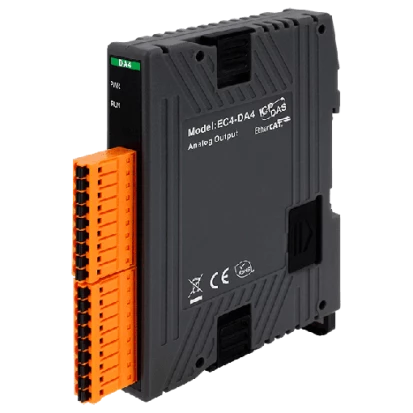

EC4-DA4

EC4-DA4

ICP DAS
SKU: 11651300
EtherCAT SubDevice Slim Module with Isolated 4-ch AO, 24VDC
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Output
Channels of analog input
12
DAC Bit Rate
4 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
17.5 mm
Depth
73 mm
Height
100 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
