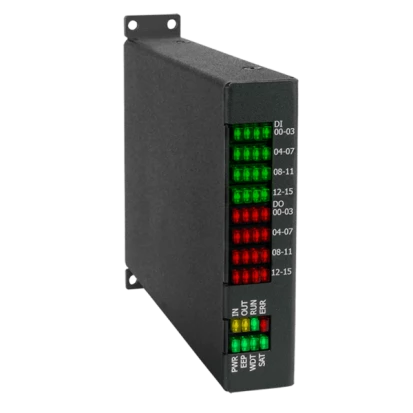

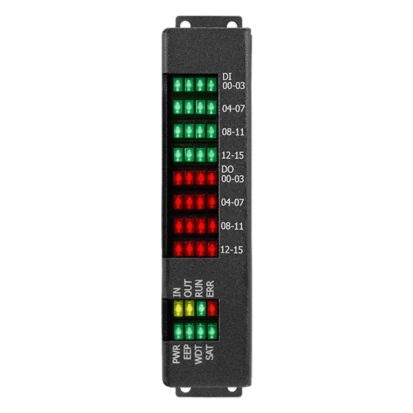

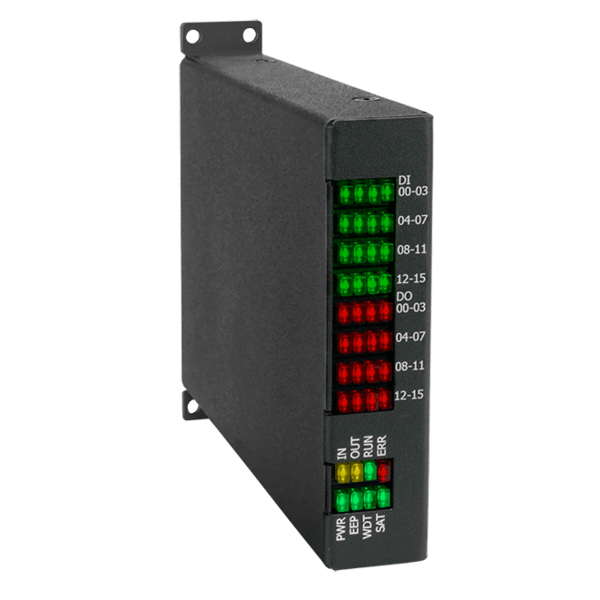

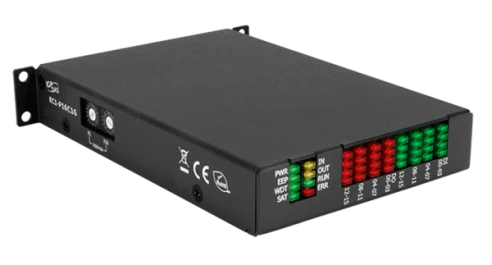

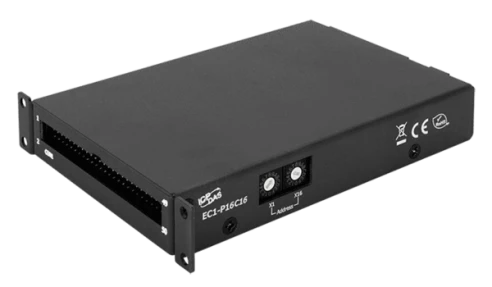

EC1-P16C16
ICP DAS
SKU: 80343900
EtherCAT Slave I/O Module with Isolated 16-channel Digital Inputs and 16-channel Digital Outputs, IP40, 24 VDC, Operating Temperature -25..75 C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP40
Supported Protocols
Industrial Protocols
EtherCAT
Digital Input
Total channels of digital input
16
Type
Dry contact
Digital Output
Total channels of digital output
16
Type
Open collector
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
20 mm
Depth
98 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
