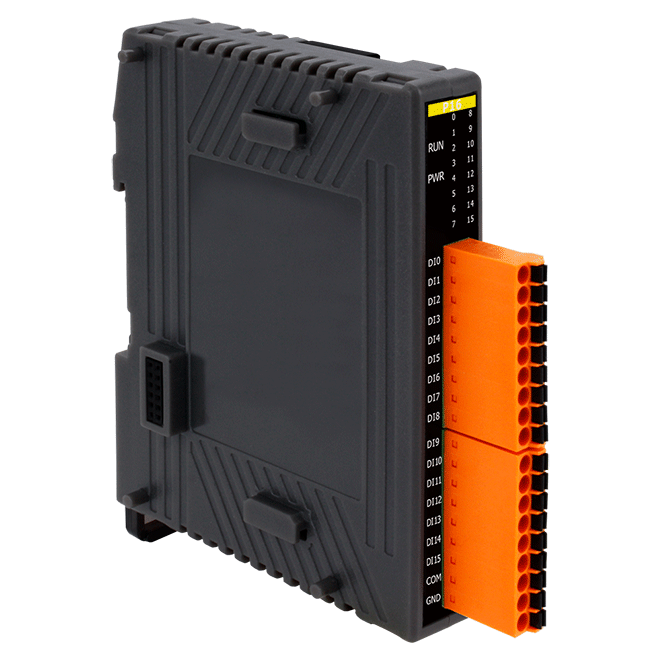

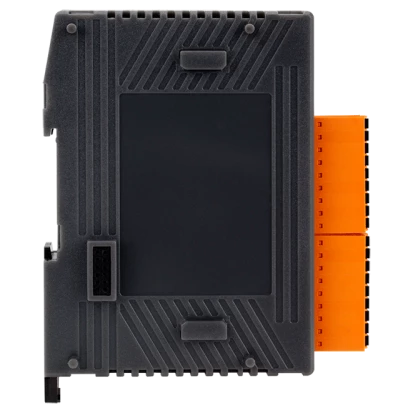

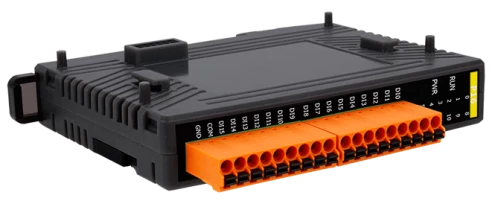

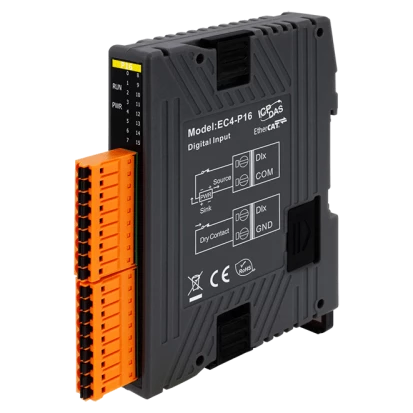

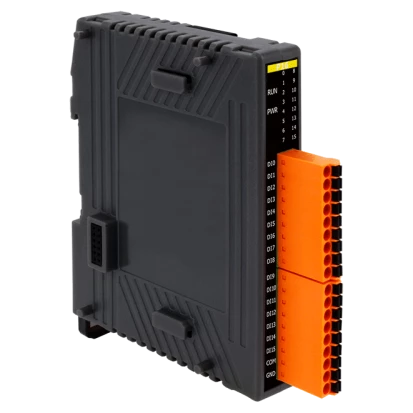

EC4-P16
ICP DAS
SKU: 11650400
EtherCAT SubDevice Slim Module with Isolated 16-ch DI, 24VDC
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Input
Total channels of digital input
16
Type
Dry contact, Wet contact
Level of Logic "0"
0~2 V
Level of Logic "1"
5~24 V
Sink/Source
Dry: Source, Wet: Sink/Source
Isolation of Digital Input
3750 V
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
17.5 mm
Depth
73 mm
Height
100 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
