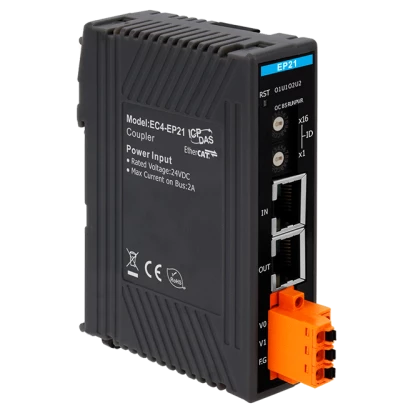

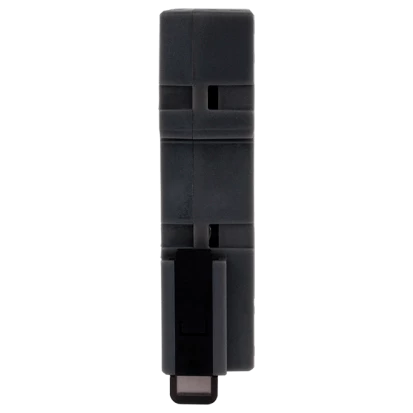

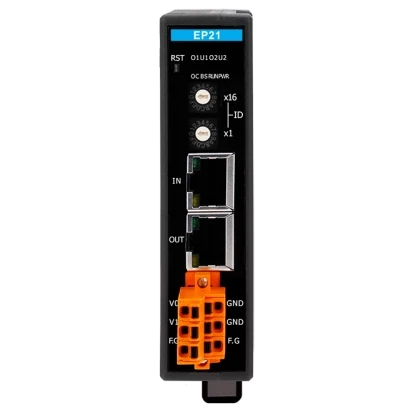

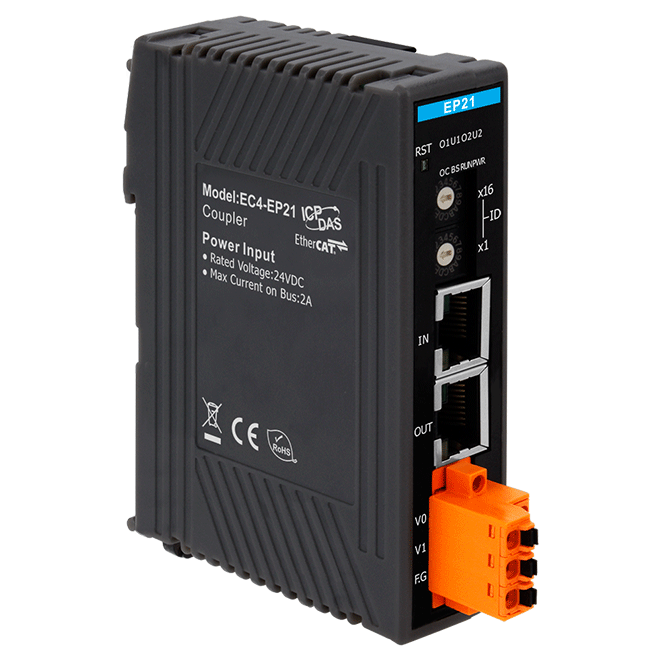

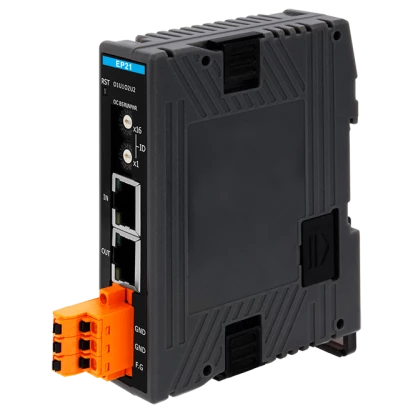

EC4-EP21
ICP DAS
SKU: 11650200
EtherCAT coupler with ID switch, 2 LAN EtherCAT, 24 VDC
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Type
Fanless
Expansion Module
Maximum number of plug-ins
12
Supported Module
EC4 series
Ethernet
10/100 Mbit/s
2
Industrial Interfaces
EtherCAT Port
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Connectors
Connectors
2xRJ45
Dimensions and weight
Width
25 mm
Depth
93 mm
Height
108 mm
System Power Input
Input Voltage DC
24..24 V
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.16 kg
Gross Weight
0.22 kg
