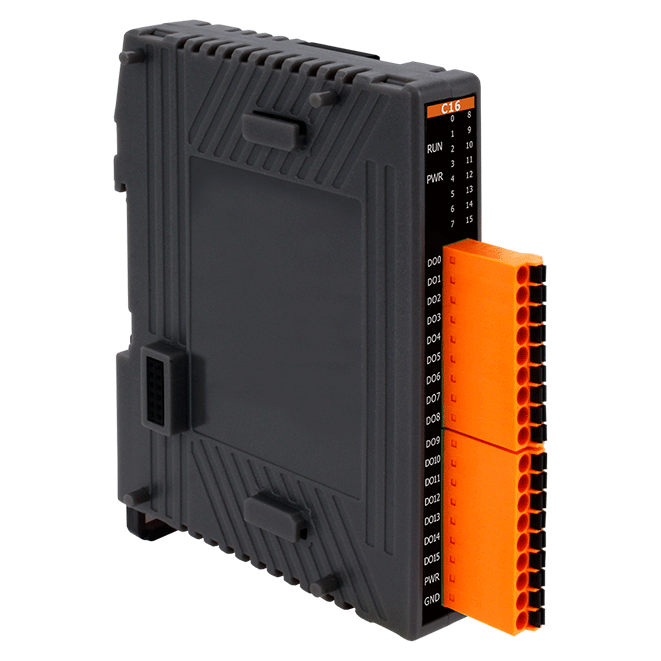

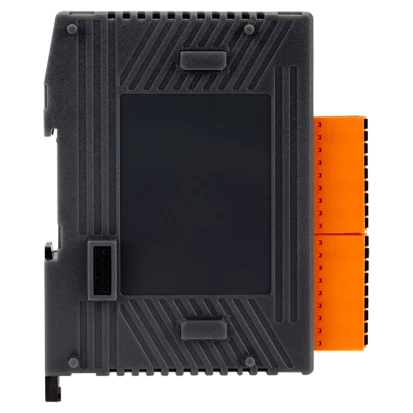

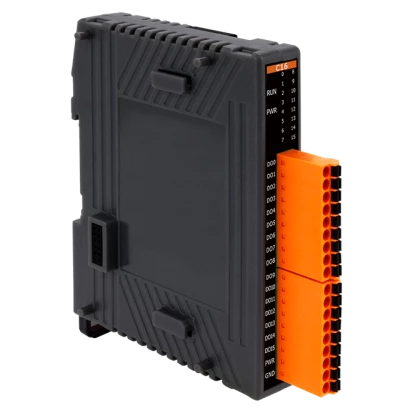

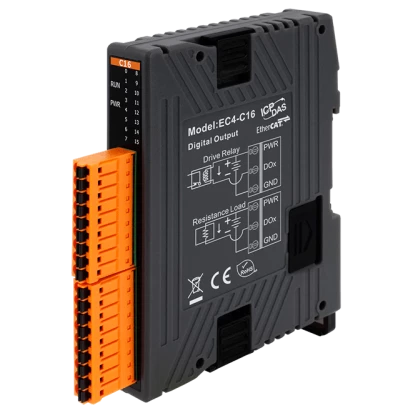

EC4-C16
ICP DAS
SKU: 11650300
EtherCAT SubDevice Slim Module with Isolated 16-ch DO, 24VDC
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Output
Total channels of digital output
16
Type
Open collector
Sink/Source
Sink
Output voltage
0~40 V
Max. load current
500 mA
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
17.5 mm
Depth
73 mm
Height
100 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
