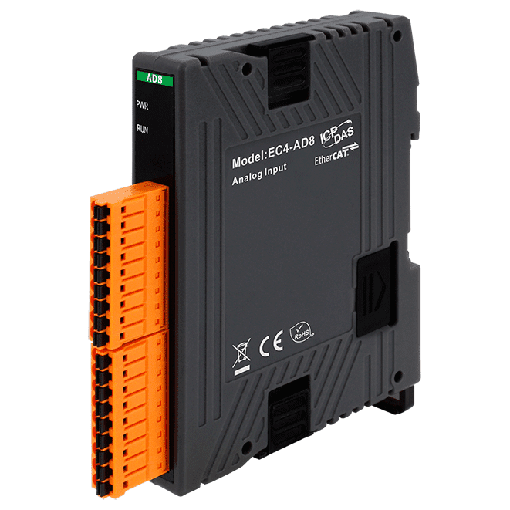

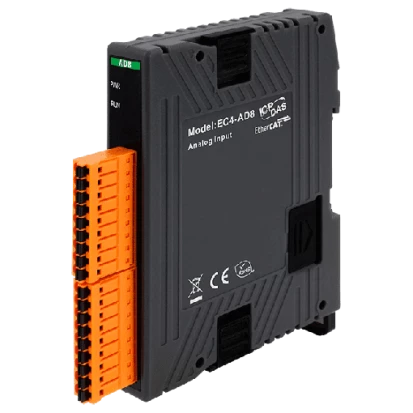

EC4-AD8

EC4-AD8

ICP DAS
SKU: 11651400
EtherCAT SubDevice Slim Module with Isolated 4/8-ch AI, 24VDC
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Input
Number of Bits
16 Bit
Voltage range
+/-2.5 V, +/-5 V, +/-10 V, 0...10 V
Sampling rate
1000 Hz
Single-Ended channels
8
Differential channels
4
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
17.5 mm
Depth
73 mm
Height
100 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
