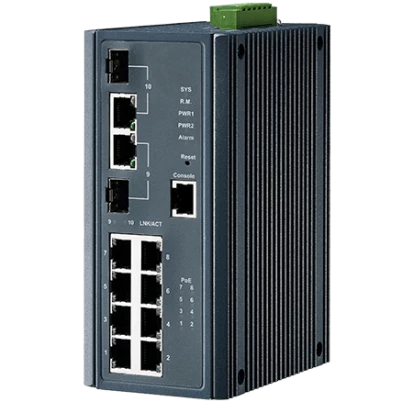

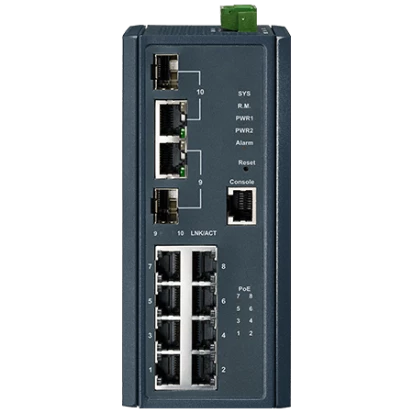

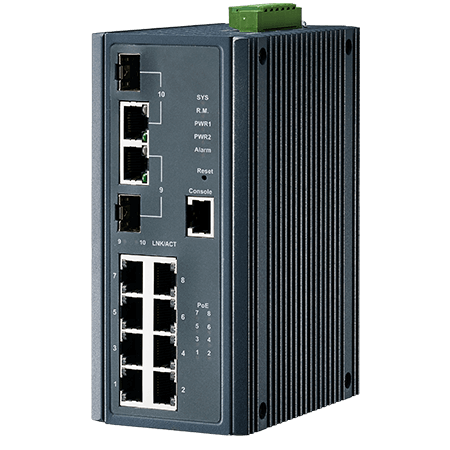

EACSW-L2
Winmate
SKU: 80149200
Plug and Play Marine Switch, IP30, 8x10/100Base-T/TX RJ-45 Port, 2xRJ-45/SFP(mini-GBIC)Combo port, 24..48 VDC redundant dual power input, Operating Temperature -15..55 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
RJ-45
SFP 1000 Mbit Ports
2
System Power Input
Input Voltage DC
24..48 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
74 mm
Depth
152 mm
Height
105 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
