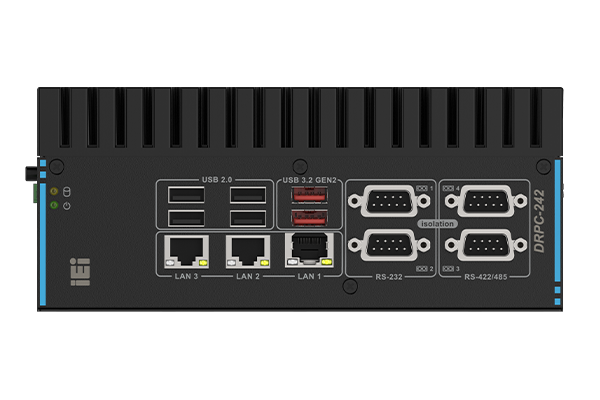

DRPC-242-ADL-P-i3CS
IEI
SKU: 11595000
DIN-Rail Embedded System, Intel Core i3-1220P CPU, 8GB DDR4 RAM, HDMI/DP, 3x2.5GbE LAN, 4xCOM, 2xRS232 Opt., 2xUSB 3.2, 4xUSB 2.0, 12-bit GPIO Opt., 1x2.5" Drive Bay, 1xM.2 2280 Key-M, 1xM.2 3052/3042 Key-B, 1xM.2 2230 Key-E, 12-28VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i3-1220P
Socket
FCBGA1744
Max CPU frequency
4.5 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i226-LM, Intel i226V
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
SIM Card slots
Yes, 1
LED / Controls
LED
Power LED, SSD LED
Controls
1xReset
Connectors
Connectors
4xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..28 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
190 mm
Height
81 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.88 kg
Gross Weight
2.66 kg
