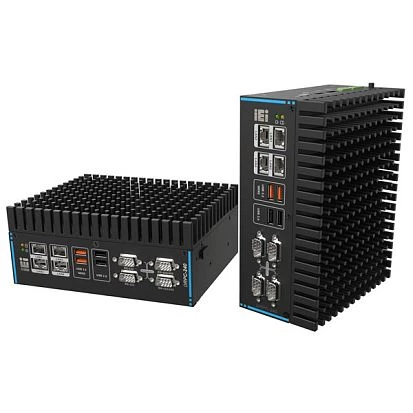

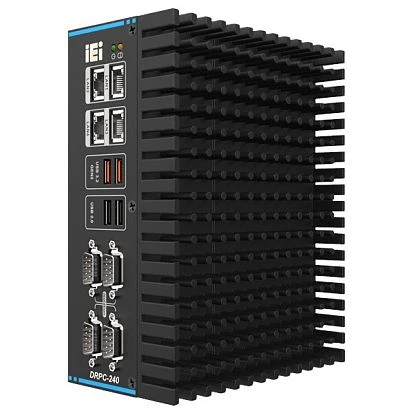

DRPC-240-TGL-U-CECS
IEI
SKU: 80135400
Fanless DIN-Rail Box-PC, Intel Celeron 6305E CPU, 8GB (Up to 64GB) DDR4 RAM, HDMI, DP++, 4x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 4xCOM, 12-bit DIO Opt., 1x2.5" Drive Bay, 1xM.2 3042/52/80 Key-B, 1xM.2 2230 Key-A, 1xPCIe x4 Opt., 12-28VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration

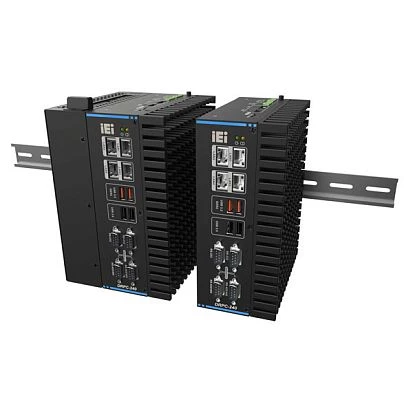

DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Celeron 6305E
Socket
FCBGA 1449
Max CPU frequency
1.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i226-LM, Intel i226V
Total Ethernet
4
2,5 Gbit/s
4
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
12
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
3052 B, 3042 B, 2280 B, 2230 A
SIM Card slots
Yes, 1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
1xReset
Connectors
Connectors

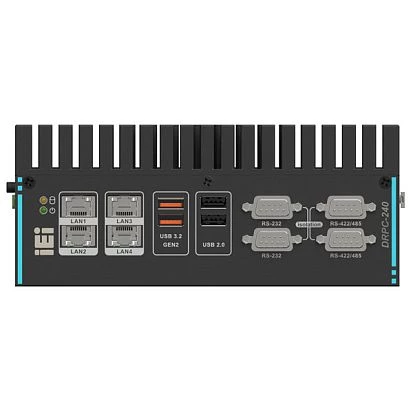

4xDB9, HDMI, 4xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..28 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
190 mm
Height
81 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
2.15 kg
Gross Weight
2.5 kg
