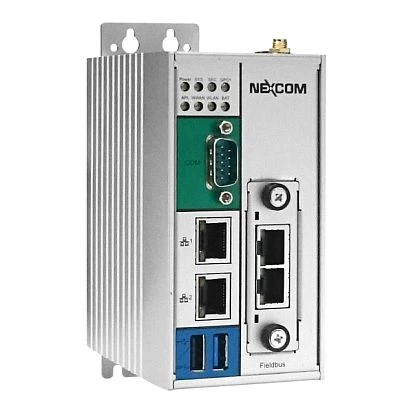

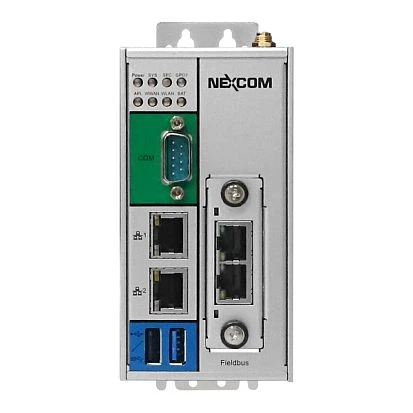

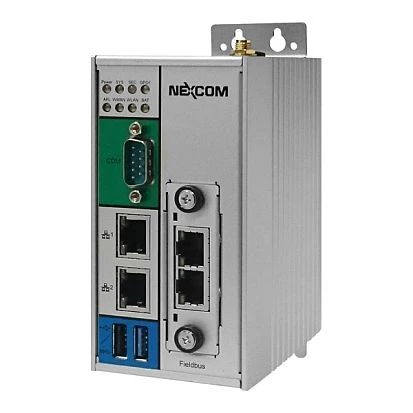

CPS-100-RE
NEXCOM
SKU: 56285800
IoT Gateway System, Intel Atom E3805 1.33GHz, 2GB DDR3L RAM on-board, 2xGbit LAN, 2xUSB, 1x eMMC 16GB, IEEE 802.11 a/b/g/n, 12/24V DC IN, Temp -20C - 65C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/485
1
USB Total
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Supported Protocols
Industrial Protocols
EtherNet/IP, EtherNet/IP adapter, EtherNet/IP scanner, MQTT
Managment Protocols
HTTP, TCP
Security Protocols
SSH
System Power Input
Input Voltage DC
12..24 V
Operating Conditions
Operating Temperature
-20..65 °C
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Dimensions and weight
Width
63 mm
Depth
100 mm
Height
151 mm
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC Input, 4xDIO
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/485
1
USB Total
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Supported Protocols
Industrial Protocols
EtherNet/IP, EtherNet/IP adapter, EtherNet/IP scanner, MQTT
Managment Protocols
HTTP, TCP
Security Protocols
SSH
System Power Input
Input Voltage DC
12..24 V
Operating Conditions
Operating Temperature
-20..65 °C
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Dimensions and weight
Width
63 mm
Depth
100 mm
Height
151 mm
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC Input, 4xDIO
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/485
1
USB Total
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Supported Protocols
Industrial Protocols
EtherNet/IP, EtherNet/IP adapter, EtherNet/IP scanner, MQTT
Managment Protocols
HTTP, TCP
Security Protocols
SSH
System Power Input
Input Voltage DC
12..24 V
Operating Conditions
Operating Temperature
-20..65 °C
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Dimensions and weight
Width
63 mm
Depth
100 mm
Height
151 mm
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC Input, 4xDIO
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
1
RS-232/485
1
USB Total
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Supported Protocols
Industrial Protocols
EtherNet/IP, EtherNet/IP adapter, EtherNet/IP scanner, MQTT
Managment Protocols
HTTP, TCP
Security Protocols
SSH
System Power Input
Input Voltage DC
12..24 V
Operating Conditions
Operating Temperature
-20..65 °C
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Dimensions and weight
Width
63 mm
Depth
100 mm
Height
151 mm
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC Input, 4xDIO
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.6 kg
Gross Weight
1 kg
