AFL3-12A-BT-J1/R/4G

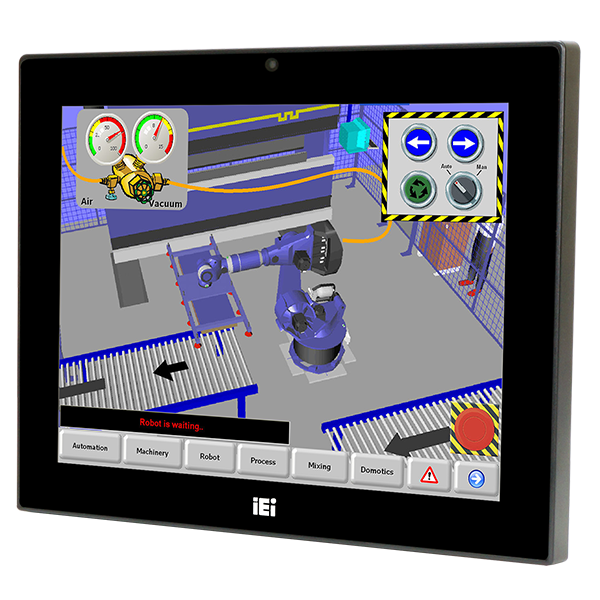

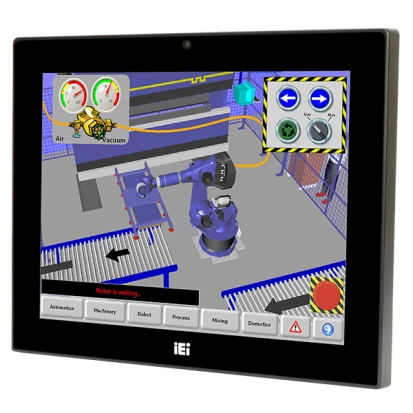

AFL3-12A-BT-J1/R/4G

IEI
SKU: 57278700
12.1" Fanless Panel PC, IP64 Front, 1024x768, 500 cd/m, Anti-Glare, Resistive Touch, Intel Celeron J1900 2.0GHz CPU, 4GB DDR3L RAM, 2xGbE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, WiFi5, 2.5" Drive Bay, MiniPCIe (mSATA), Audio, 9-30VDC-in, R17
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP64
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.1 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
500 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek RTL8111H
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
SATA 2
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, RJ45 (COM)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
304 mm
Height
243 mm
Depth
44 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.92 kg
Gross Weight
3.95 kg
