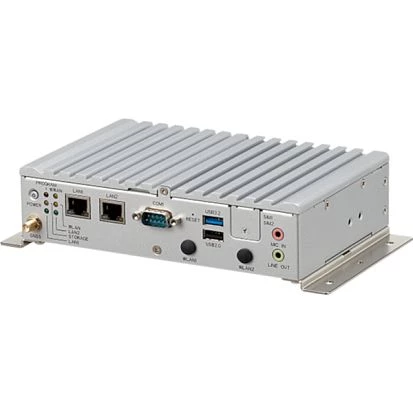

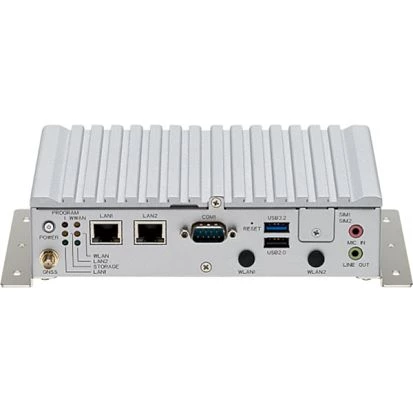

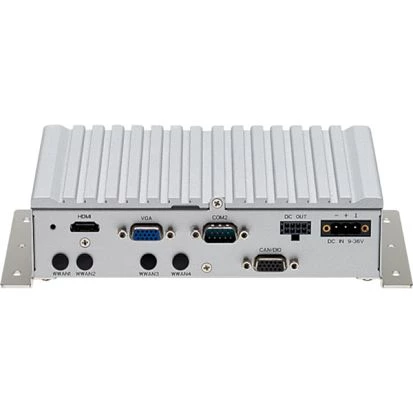

VTC-1030
NEXCOM
SKU: 57412100
Embedded server with Intel Atom x6211E 1.3GHz CPU, 4GB DDR4 RAM, 1xVGA, 1xHDMI, 2xLAN (2.5 Gbit), 2xRS232/422/485, 1xCAN DIO, 2xUSB, 1x2.5" SSD Tray, 1xMini-PCIe, 2xM.2, Audio, +9...36V DC-in, -40..70C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6211E
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
Yes
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i225IT
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
1
USB v3.x
1
Digital Input-Output
Channels of DIO
9
Isolation DIO
Yes
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
2, Micro-SIM
Additional Functions
GPS
GPS
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xRJ45, 2xUSB, Mic In, Line Out, DC input (terminal block), DB15 CAN Bus, 12V DC Output, 2xSIM Card Slot, RP-SMA Male, 5xSMA, 5-pin M12 DC
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
185 mm
Height
45 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure. Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
Shock
Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g. Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Vehicle
E-Mark
Dimensions
Net Weight
1.2 kg
Gross Weight
1.7 kg
