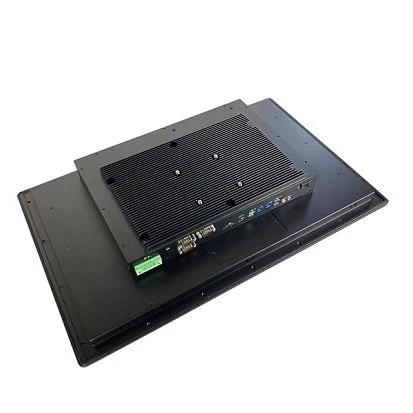

WLP-7H20-22-MBKPT
Wincomm
SKU: 57738300
21.5" Fanless Panel PC, IP66 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i5-1245UE 3.3GHz CPU, 4GB DDR4 RAM, 2,5" 500GB HDD, 2xHDMI, 2x2.5GbE LAN, 2xUSB 2.0, 2xUSB 3.2, 2xUSB Type-C, 3xCOM, 3xM.2, Audio, 12-28VDC-in with 100W PSU, 0..40C
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
21.5 "
Aspect Ratio
16:9
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i5-1245UE
Socket
CPU onboard
Chipset
Chipset
Intel SoC
Memory
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Ethernet
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
6
USB 2.0
2
Storage Cage
2.5" Cage Intenal
1
Anti-Vibration
Yes
Extension Slots
Total
3
M.2
3
Connectors
Connectors
3xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, USB type C
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
313 mm
Height
240 mm
Depth
48.5 mm
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
10 kg
Gross Weight
11 kg
