WEBS-5491

WEBS-5491

Portwell
SKU: 56558900

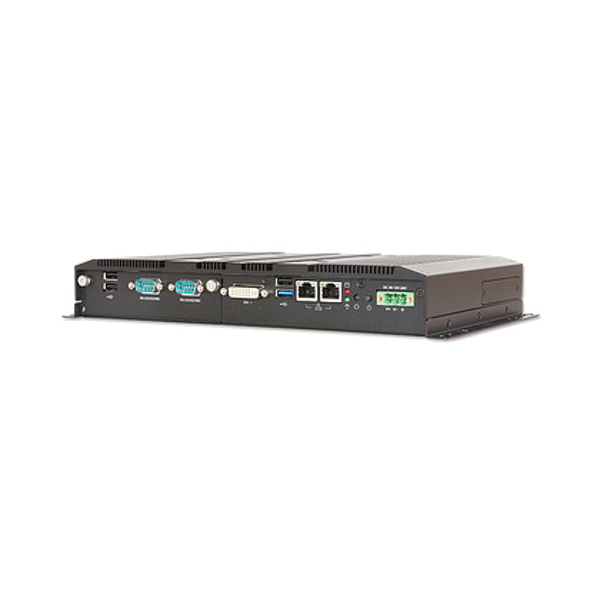

Embedded Fanless System with Intel Atom E3845 1.91GHz, up to 8GB DDR3L SO-DIMM, DVI-I,1xCompact Flash, 1xSD slot, 1x SATA 2.5", 2x Gb LAN, 2xCOM, 4xUSB, Mini PCIe, 12-24V DC-in, -30..+70C Operation Temperature
Price on request
Available
Available

Expansion Unit
Price with VAT
Price on request
Price on request
Expansion Unit
Price with VAT
Price on request
Price on request

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
CompactFlash Slots
1
SD Slots
1
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
DVI, 2xRJ45, DC Input
System Power Input
Input Voltage DC
12 V
Operating Conditions
Operating Temperature
-30..70 °C
Standards and Certifications
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.6 kg
Gross Weight
2 kg
