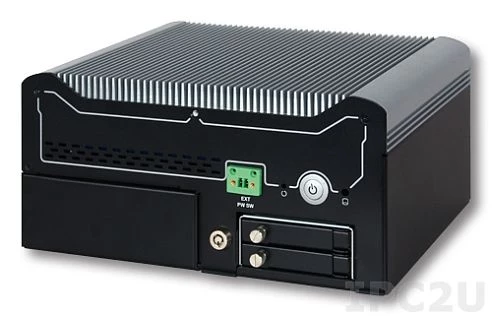

WEBS-3583-4570TE
Portwell
SKU: 06565300
Embedded Fanless Rugged Server with Intel Core i5-4570TE 2.7GHz, Q87 chipset, VGA/DP/HDMI, 2xGb LAN, 6xCOM, 4x USB 3.0, 4x USB2.0, 2x2.5" SATA Drive Bays, mSATA, Mini-PCIe, 2xPCIe x1, Audio, 120W Power Adapter
Price on request
Available on order
Available on order
Construction
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i5-4570TE
Max CPU frequency
3.3 GHz
Chipset
Chipset
Intel Q87
Memory
Form-factor
DDR3
Socket Type
2xDIMM
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i217LM 10/100/1000 Mbps, Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC886-GR
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
3
PCI Express x1
2
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
6xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 8xUSB, Mic In, Line In, Line Out, Display Port, DC input (terminal block), DB9 GPIO
System Power Input
Input Voltage DC
12..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Dimensions and weight
Width
253 mm
Height
120 mm
Depth
193 mm
Operating Conditions
Operating Temperature
-20..40 °C
Vibration
5Grms, 5-500 Hz
Shock
50G, 11 msec
Standards and Certifications
Certifications
CE/FCC
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
7 kg
Gross Weight
7 kg
