+886 (2) 2930 1196
Industrial Automation Systems
+886 (2) 2930 1196
Home
Catalog
Industrial Computers
Embedded Edge PC, Industrial Box / Mini-PC
Embedded Industrial Edge Computer
WEBS-21D0

WEBS-21D0

Portwell
SKU: 56432200

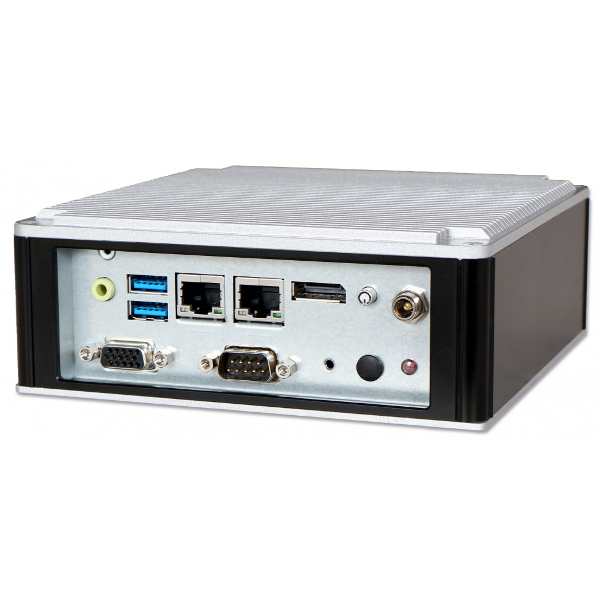

Embedded Fanless Rugged System with Intel Atom Dual/Quad Core E3900 series, Up to 8GB DDR3L 1866/1600 SO-DIMM, VGA, DP, 1x 2.5" SATA HDD/SSD, 1x mSATA, 1xMicro SD, 2xGb LAN, 1xCOM, 2xUSB 3.0, Audio, Mini-PCIe, M.2, 12-24V DC-in, -20..+60C Op.Temp.
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Portable
Protection Level of Chassis
IP40
Type
Fanless
CPU
CPU Support Type
Atom
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
mSATA
1
MicroSD
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 2xUSB, Display Port
System Power Input
Input Voltage DC
12 V
Dimensions and weight
Width
150 mm
Height
150 mm
Depth
60 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5Grms/10~500Hz, IEC 60068-2-6
Shock
50G, 11msec, IEC 60068-2-27
Standards and Certifications
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.6 kg
Gross Weight
2 kg
