WEBS-1150

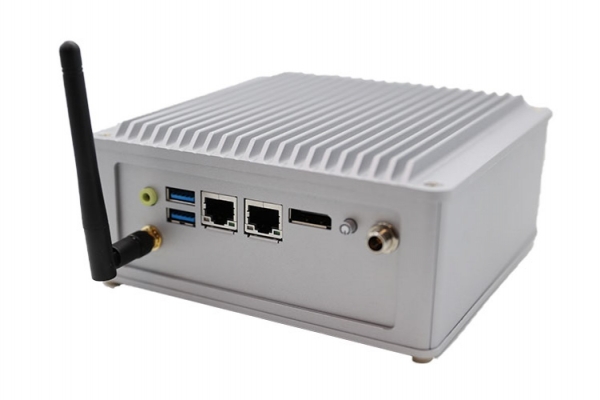

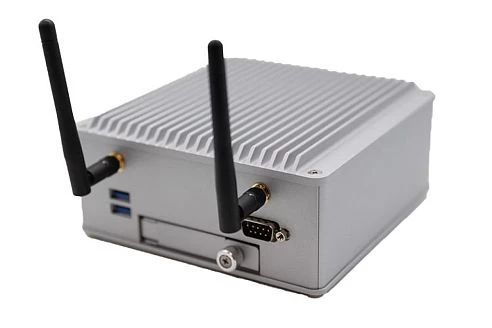

WEBS-1150

Portwell
SKU: 09223100
Embedded Fanless Rugged System with Intel Celeron N3350, Up to 8GB DDR3L 1333/1866/1600, DP, 1xSATA3, 1x mSATA, 2xGb LAN, 4xCOM, 4xUSB, Audio, Mini-PCIe, 8bit GPIO, 12-24V DC-in, -20..+60C Op.Temp.
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop
Type
Fanless
CPU
Processor Installed
Intel Atom E3940
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3L
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 4xUSB, DC Input, Display Port
System Power Input
Input Voltage DC
12 V
Dimensions and weight
Width
149 mm
Height
66 mm
Depth
149 mm
Operating Conditions
Operating Temperature
-40..85 °C
Dimensions
Net Weight
1.6 kg
Gross Weight
2 kg
