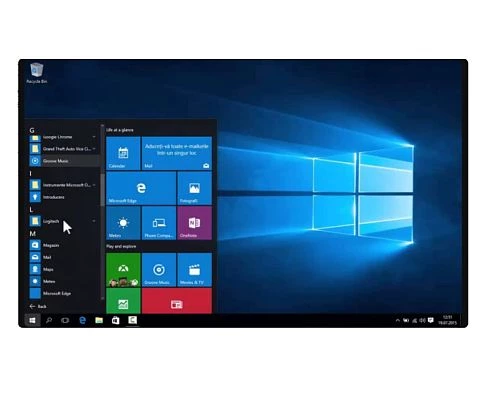

W32IK3S-PTA3

W32IK3S-PTA3

Winmate
SKU: 09026700

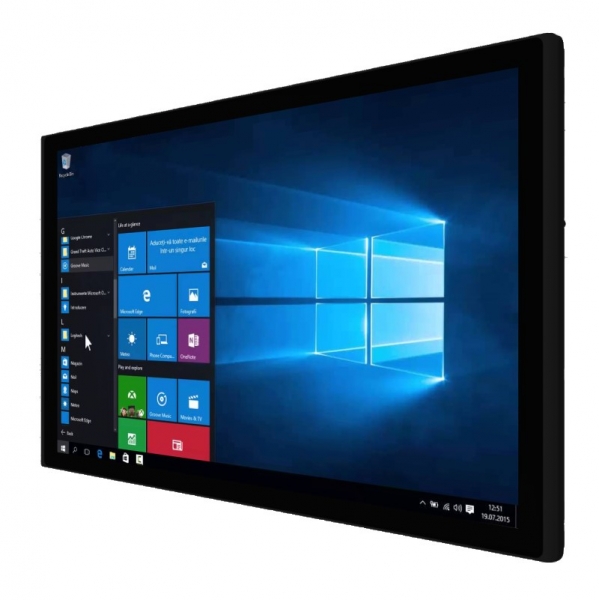

32" TFT LCD Panel PC, P-Cap Touch, Intel Core i5-7200U 2.5GHz CPU, 4GB RAM, 64GB mSATA SSD MLC, HDMI, 2x GbE LAN, 1x COM, 2x USB3.0, IP65 front
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall, VESA 200, VESA 200x100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
32 "
Maximum resolution
1920x1080 Dots
Brightness
400 Cd/m2
Contrast Ratio
4000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Socket
CPU onboard
Max CPU frequency
3.1 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Audio
Audio Controller
Realtek ALC262
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
LED / Controls
Controls
KeyPad
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
50 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
799 mm
Height
502.7 mm
Depth
63.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
1.48/1.98/2.24 g rms for XYZ/ 5-500Hz
Shock
40g for 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
14.5 kg
Gross Weight
16 kg
