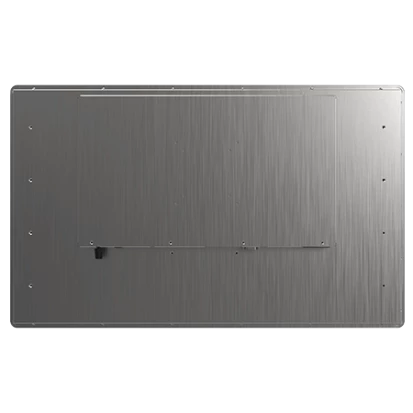

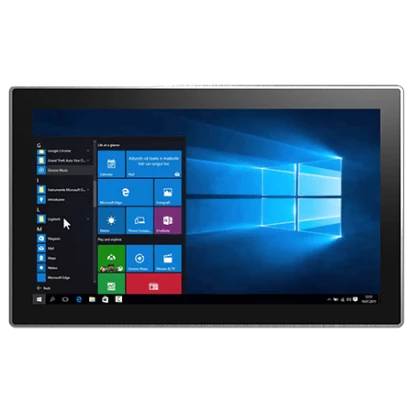

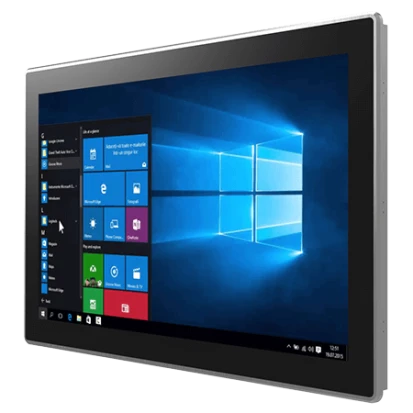

W27IT7T-PPA1
Winmate
SKU: 10760900
27" Fanless Panel PC, PP Series, IP65 Front, 1920x1080, 300 cd/m2, Intel Core i5-1135G7 CPU, Up to 64GB DDR4 RAM, Up to 2TB M.2 SSD, DP, HDMI Opt, 2xCOM, 4xUSB 3.2, 2xGbE LAN, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 1xPCIe x16, 12VDC-in w/ PSU
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
27 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
3000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
ECC
No
Default on Board Memory
4 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
PCI Express x16
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
LED
1xHDD LED, Power LED
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC Input, Display Port
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
683 mm
Height
421 mm
Depth
75.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
11.8 kg
Gross Weight
13.3 kg
