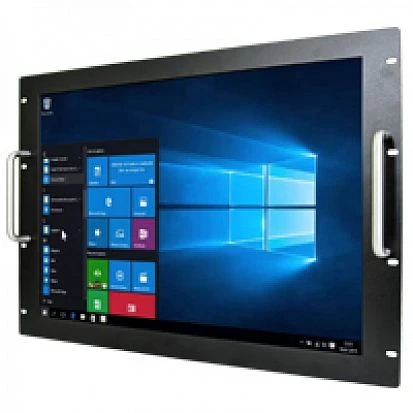

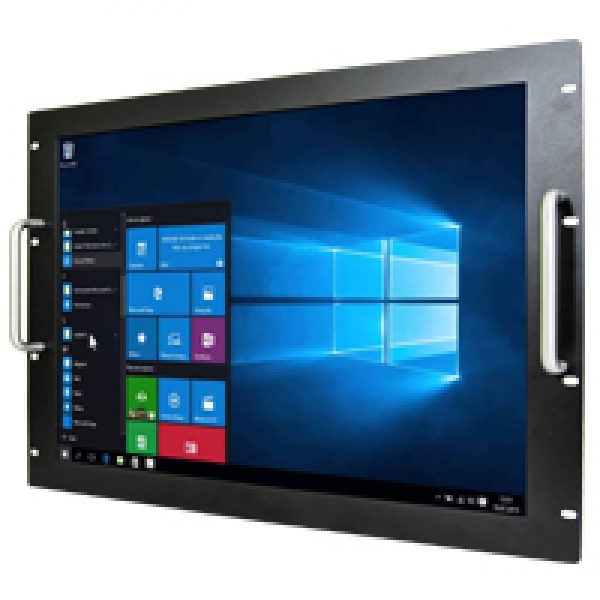

W18IK3S-RKA1

W18IK3S-RKA1

Winmate
SKU: 09085200
18.5" LCD TFT Full HD Touch Panel Computer with 5-wire Resistive Touch, Intel Core i5-7200U 2.5GHz, 4GB DDR4, 64GB M.2 B Key, HDMI, 2xGbE LAN, 1xCOM, 2xUSB 3.0, 12VDC-in with external adapter
Price on request
Available
Available

Construction
Mounting Configuration
Embedded, Panel, 19" Rackmount, Wall VESA 75
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
18.5 "
Maximum resolution
1920x1080 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Socket
CPU onboard
Max CPU frequency
3.1 GHz
Chipset
Chipset
Intel Kaby Lake SoC
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
1st Storage Capacity
64 GB
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
55 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
483 mm
Height
310 mm
Depth
73 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC
Vibration And Shock
IEC 60068-2-64, IEC 61850-3
Dimensions
Net Weight
10 kg
Gross Weight
12 kg
