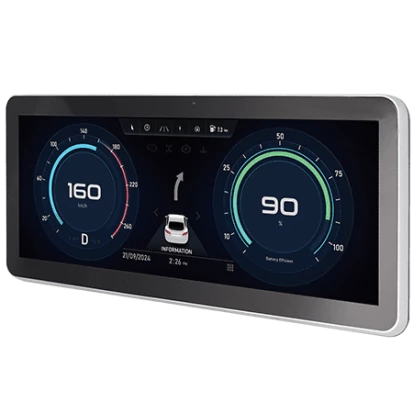

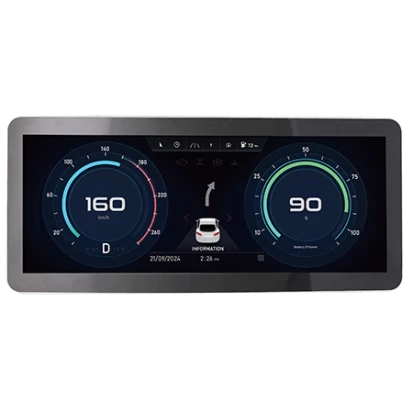

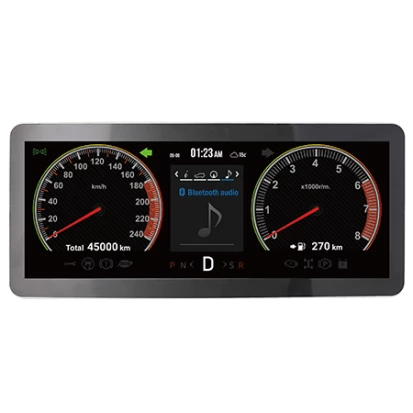

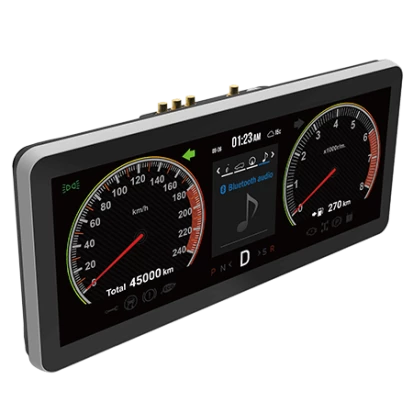

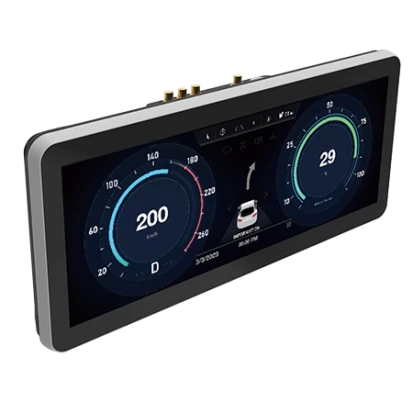

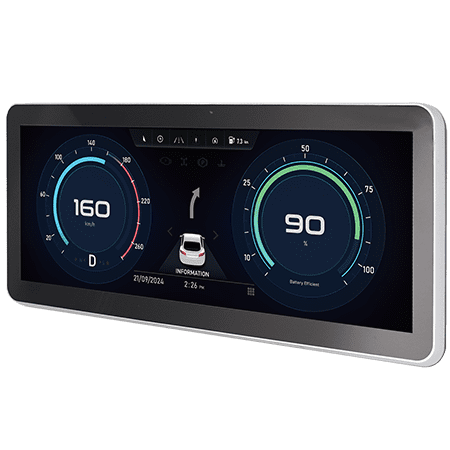

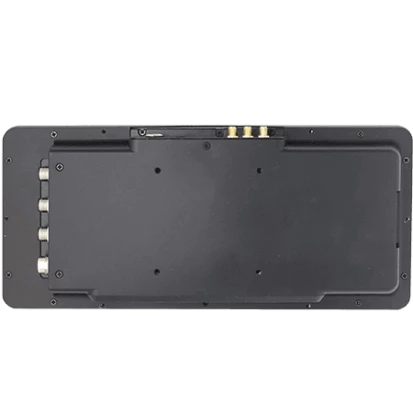

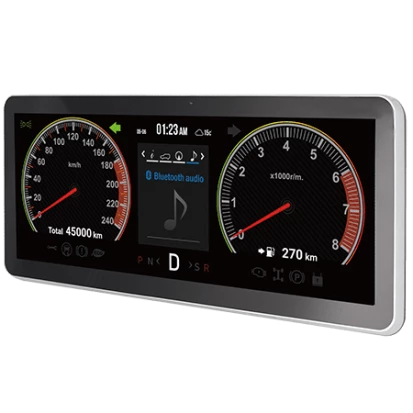

W12IE3S-GSB1
Winmate
SKU: 10759300
12.3" Fanless Panel PC, G-WIN GC Series, IP65, 1920x720, 1000 cd/m2, PCAP Touch, Intel Celeron N6211 1.2GHz CPU, 4GB DDR4 RAM, 128GB SATA SSD, 1xCOM Opt., 1xUSB 2.0 M12, 1xMicro-USB, 1xGbE M12 LAN, 2xCAN M12 Opt., 1xMicroSD, 10-60VDC-in w/ PSU
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
12.3 "
Maximum resolution
1920x720 Dots
Brightness
1000 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Celeron N6211
Socket
FCBGA1493
Max CPU frequency
3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Digital Input-Output
Channels of DIO
6
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
SATA
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 M
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
Optional
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
SIM Card Slot, 3xM12, 1xMicro USB, M16 (DC)
System Power Input
Input Voltage DC
10..60 V
Software
Operating System Compatibility
Windows 10, Ubuntu 20.04
Dimensions and weight
Width
325.02 mm
Height
146.5 mm
Depth
45 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
5-95%
Vibration
MIL-STD-810H Method 514.8 Procedure I
Shock
MIL-STD-810H Method 516.8 Procedure I
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
4.4 kg
Gross Weight
5.1 kg
