W10IB3S-PCH2AC

W10IB3S-PCH2AC

Winmate
SKU: 06898000

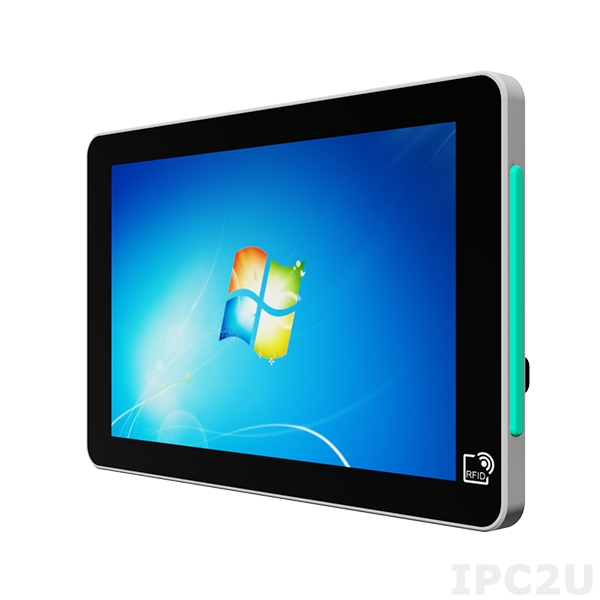

Fanless Panel PC 10.1" TFT LCD, projective capacitive touch, Intel Celeron N2930 1.83GHz CPU, 2GB DDR3, 64GB SSD, 1xCOM, 2xUSB, 2xGbE LAN, HDMI, HF RFID, power adapter AC DC
Price on request
Available
Available

Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
300 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel WG82574L
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
LED / Controls
LED
Power LED, Programmable LED Light Bar Indicator
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows Embedded Standart 8.1
Dimensions and weight
Width
263.28 mm
Height
171 mm
Depth
35.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.5 kg
Gross Weight
3 kg
Construction
Construction Chassis
ABS plastic chassis
