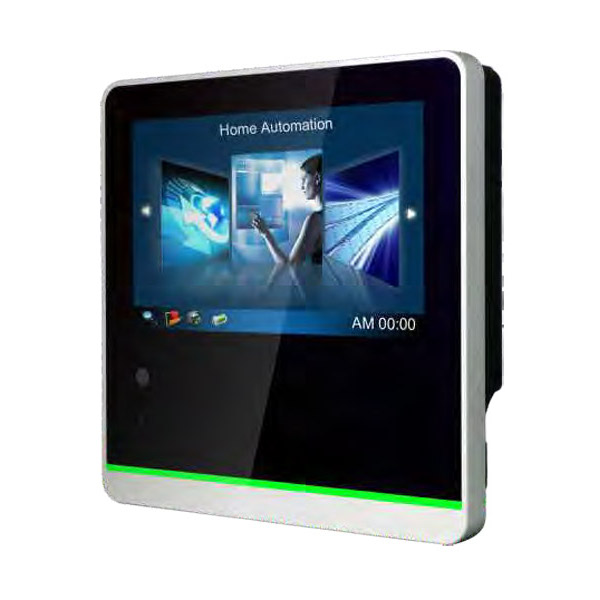

W05TA3S-PCT3AC

W05TA3S-PCT3AC

Winmate
SKU: 56536000
Fanless Panel Computer 5" TFT LCD, 800x480, P-CAP Multi-Touch, TI Cortex A8 AM3354 1GHz, 512MB DDR2, 1GB Nand Flash, 1x USB A-type, 1x 1000 (Support PoE standards IEEE 802.3at), 2xDIO,Micro SD, 12VDC-in
Price on request
Available
Available

Construction
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Display
Diagonal
5 "
Maximum resolution
800x480 Dots
Brightness
300 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A8 TI AM3354
Max CPU frequency
1 GHz
Memory
Form-factor
DDR2
Default on Board Memory
0.5 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
1
Digital Input-Output
GPIO
2xDigital In / 2xDigital Out
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
1st Storage Capacity
1 GB
Connectors
Connectors
RJ45 Ethernet, MicroSD card slot, USB type A
System Power Input
Input Voltage DC
12..12 V
Dimensions and weight
Width
138 mm
Height
138 mm
Depth
29 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
